Composite Materials Merit Badge Helps and Documents

The Composite Materials Merit Badge is an exciting journey into the world of modern materials engineering! This badge offers a unique opportunity for Scouts to delve into the science and technology behind composite materials, which are becoming increasingly important in various industries, from aerospace to sports equipment.

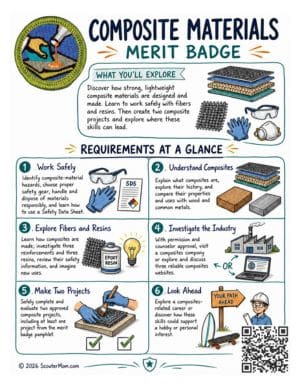

The Composite Materials merit badge emblem

As Scouts embark on this adventure, they’ll discover how composite materials are made by combining two or more distinct materials to create a new material with superior properties. They’ll learn about the different types of composites, such as fiberglass, carbon fiber, and Kevlar, and understand how the combination of strength and light weight makes these materials ideal for many applications.

The activities and requirements for the Composite Materials merit badge are designed to spark curiosity and inspire innovation. Scouts will get hands-on experience by creating simple composite materials, explore various applications, and understand the role of composites in environmental sustainability. They’ll also meet professionals in the field, providing insights into careers in materials science and engineering.

The Composite Materials merit badge is not just about learning; it’s about applying knowledge in creative ways. It encourages Scouts to think critically about how materials can be used to solve problems and improve our world. So, let’s get started on this fascinating journey into the world of composite materials!

Requirements and Workbook

Download the Composite Materials Merit Badge Requirements

The Composite Materials Merit Badge from the Boy Scouts of America offers an engaging and comprehensive introduction to the world of composite materials. The requirements for the Composite Materials merit badge cover a wide range of topics, starting with understanding the safety aspects of working with composites, including identifying hazards, handling precautions, and the importance of Safety Data Sheets (SDS). This merit badge was updated in 2023.

Composite Materials Merit Badge Workbook / Worksheet

The Composite Materials Merit Badge Workbook, available at usscouts.org, is designed to help Scouts organize their thoughts, track their progress, and prepare for discussions with their merit badge counselors. The worksheet includes questions and spaces for notes related to each requirement of the Composite Materials merit badge, ensuring that Scouts thoroughly understand and engage with each aspect of the subject matter.

Answers and Resources

Answers and Helps for the Composite Materials Merit Badge

Find specific helps for the Composite Materials merit badge requirements listed on this page. Some of these resources will just give the answers. Others will provide engaging ways for older Scouts to introduce these concepts to new Scouts.

Composite Materials Merit Badge Requirement 1: Safety

Do the following:
(a) Explain to your counselor the most likely hazards you may encounter while working with composite materials and what you should do to anticipate, mitigate, and prevent, and respond to these hazards. Describe the appropriate safety gear and clothing that should be used when working with composite materials.
(b) Explain the precautions that must be taken when handling, storing, and disposing of resins, reinforcements, and other materials used in composites. Include in your discussion the importance of health, safety, and environmental responsibility and awareness.
(c) Describe what a safety data sheet (SDS) is and tell why it is used.

Hazards and Safety

Hazards While Working with Composite Materials

  • Chemical Exposure: Many composite materials involve resins and hardeners that can be harmful if they come into contact with your skin or if their fumes are inhaled.
  • Dust and Particles: Cutting or sanding composite materials can release small particles or fibers that can be harmful if inhaled or if they come into contact with the eyes.
  • Sharp Edges: The fibers in materials like fiberglass can create sharp edges when cut, posing a risk of cuts or abrasions.
  • Heat: Some composite materials generate heat when curing, which can cause burns if not handled carefully.

How to Anticipate, Mitigate, Prevent, and Respond to These Hazards

  • Education: Learn about the specific materials you’re working with and understand their properties and risks.
  • Ventilation: Ensure good ventilation in the workspace to avoid inhaling harmful fumes or dust.
  • Proper Handling: Use tools and techniques that minimize the risk of exposure to harmful substances and sharp edges.
  • Emergency Plan: Have a clear plan for how to respond to accidents, including first aid and emergency contacts.

Appropriate Safety Gear and Clothing

  • Gloves: Wear chemical-resistant gloves to protect your hands from hazardous materials and sharp edges.
  • Respirator or Mask: Use a respirator or mask to avoid inhaling dust and fumes.
  • Safety Goggles: Protect your eyes from dust and particles with safety goggles.
  • Protective Clothing: Wear long sleeves and pants to protect your skin from exposure to harmful substances and sharp fibers.
  • Apron or Lab Coat: An apron or lab coat can provide an additional layer of protection against spills and splashes.

Remember, safety is paramount in all scouting activities. By understanding and respecting the hazards associated with composite materials and using the appropriate safety gear, you’ll ensure a safe and enjoyable learning experience while working on the Composite Materials merit badge.

Handling, Storing, and Disposing of Materials

Handling, storing, and disposing of materials used in composites, like resins and reinforcements, require careful precautions to ensure health, safety, and environmental responsibility. Here’s a guide on how to manage these materials responsibly for the Composite Materials merit badge:

Handling Precautions

  • Wear Protective Gear: Always wear gloves, safety goggles, and masks or respirators when handling these materials to prevent skin and eye contact and inhalation of harmful substances.
  • Avoid Skin Contact: Resins can cause skin irritation or allergic reactions. Avoid direct contact with skin.
  • Proper Ventilation: Work in a well-ventilated area to avoid inhaling fumes from resins and hardeners.
  • Prevent Contamination: Keep resins and reinforcements clean and free from contamination to maintain their properties and safety.

Storing Precautions

  • Appropriate Containers: Store materials in labeled, airtight containers to prevent spillage and contamination.
  • Temperature Control: Store materials in a cool, dry place, away from direct sunlight and extreme temperatures, as heat can cause resins to cure prematurely.
  • Segregate Materials: Keep different types of materials separated to avoid accidental mixing or chemical reactions.

Disposal Precautions

  • Follow Local Regulations: Dispose of composite materials according to local environmental and safety regulations.
  • Proper Disposal of Chemicals: Never pour resins or hardeners down the drain. They should be disposed of as hazardous waste.
  • Recycle When Possible: Some composite materials can be recycled. Explore options for recycling to reduce environmental impact.

Importance of Health, Safety, and Environmental Responsibility

  • Personal Health and Safety: Proper handling, storage, and disposal ensure your safety and the safety of those around you. It prevents accidents and health issues related to exposure to hazardous materials.
  • Environmental Impact: These materials can be harmful to the environment if not disposed of properly. Responsible disposal minimizes pollution and ecological damage.
  • Sustainability: Understanding and practicing environmental responsibility helps promote sustainability in scouting and beyond. It’s our duty to leave no trace and to ensure that our activities do not negatively impact the environment.

As Scouts, it’s important to remember the principles of the Scout Oath and Law in every activity, including working with composite materials. Being careful, considerate, and conscientious about health, safety, and the environment is a crucial part of being a responsible Scout.

Safety Data Sheets

Requirement 1c of the Composite Materials Merit Badge involves understanding the importance of a Safety Data Sheet (SDS) and its use in the context of handling materials safely.

What is a Safety Data Sheet (SDS)? A Safety Data Sheet (SDS), formerly known as a Material Safety Data Sheet (MSDS), is a detailed document that provides information about the properties of a specific chemical or substance. It is a crucial tool for workplace safety and health management. An SDS includes information on various aspects of the substance, including:

  • Identification: The name of the substance, its manufacturer, and emergency contact information.
  • Hazard Identification: Details on the hazards the substance poses to health and safety, including potential health effects and symptoms.
  • Composition/Information on Ingredients: Information on the chemical ingredients and their concentrations.
  • First-Aid Measures: Instructions on how to respond to various types of exposure to the substance, such as inhalation, skin contact, or ingestion.
  • Fire-Fighting Measures: Information on how to extinguish fires involving the substance.
  • Accidental Release Measures: Guidelines on how to handle spills or leaks safely.
  • Handling and Storage: Recommendations for safe handling and storage of the substance.
  • Exposure Controls/Personal Protection: Information on ventilation requirements and types of protective equipment needed.
  • Physical and Chemical Properties: Data on the substance’s appearance, odor, boiling point, melting point, etc.
  • Stability and Reactivity: Information on the chemical stability of the substance and possible hazardous reactions.
  • Toxicological Information: Detailed information on the toxic properties of the substance.
  • Ecological Information, Disposal Considerations, Transport Information, Regulatory Information, and Other Information: Additional relevant safety and handling information.

Why is an SDS Used? The SDS is used for several important reasons:

  • Safety: It provides essential information to users about how to handle, store, and dispose of substances safely.
  • Health Protection: It offers guidance on protective measures and first aid in case of exposure, helping to prevent accidents and health hazards.
  • Regulatory Compliance: In many regions, having an accessible SDS for each hazardous substance is a legal requirement. It ensures compliance with workplace safety regulations.
  • Emergency Response: It provides crucial information for emergency responders in case of accidents involving the substance.

Understanding and utilizing the Safety Data Sheet is a key part of responsibly handling materials, especially when working with potentially hazardous substances in composite materials. It’s an essential resource for Scouts to learn and use as part of their commitment to safety in all scouting activities.

Composite Materials Merit Badge Requirement 2: Composite Materials

Do the following:
(a) Explain what composite materials are. Include a brief history of composites and how they have developed.
(b) Compare the similarities and differences between composites and wood, aluminum, copper, and steel. Describe the physical, electrical, mechanical, corrosive, flammability, cost, and other such properties. For each of these raw materials, give one example of how it can be shaped and used for a specific application.

The History of Composite Materials

Requirement 2a of the Composite Materials Merit Badge asks Scouts to explain what composite materials are and to provide a brief history of their development.

What are Composite Materials? Composite materials are engineered or naturally occurring materials made from two or more constituent materials with significantly different physical or chemical properties. When combined, these materials create a new material with characteristics different from the individual components. The constituents remain separate and distinct within the finished structure, providing a unique combination of properties. Common examples include fiberglass, carbon fiber, and reinforced concrete.

Brief History of Composites:

  1. Ancient Times: The use of composite materials dates back to ancient civilizations. For example, ancient Egyptians used straw and mud to create stronger bricks, and ancient Mongolians combined wood, bone, and animal glue to make composite bows for archery.
  2. 20th Century Advancements: The modern era of composite materials began in the early 20th century. In the 1930s and 1940s, developments in polymer chemistry led to the creation of plastics and resins, which could be combined with fibers to create strong, lightweight composites. This period saw the development of fiberglass (glass fibers in a polymer matrix) and the first uses of carbon fiber.
  3. Post-World War II: After World War II, the use of composites expanded rapidly, especially in the aerospace, automotive, and sports equipment industries. The high strength-to-weight ratio of composites made them ideal for aircraft, spacecraft, and high-performance vehicles.
  4. 21st Century: Today, composites are an integral part of many advanced technologies. Innovations continue in creating stronger, lighter, and more sustainable composite materials. There’s a growing focus on developing eco-friendly composites and recycling methods, reflecting a commitment to environmental responsibility.

Composites have revolutionized various industries by offering materials that provide unprecedented strength, durability, and lightness compared to traditional materials. Understanding the history and development of composite materials helps Scouts appreciate the innovative spirit and scientific advancements that have shaped the modern world.

As Scouts explore the Composite Materials merit badge, they’re not just learning about materials; they’re connecting with a legacy of innovation and problem-solving that is a core part of scouting.

Composites vs Traditional Materials

Requirement 2b of the Composite Materials Merit Badge involves comparing composites to traditional materials like wood, aluminum, copper, and steel, focusing on various properties and examples of their applications.

Composites vs. Traditional Materials:

  1. Composites:
    • Physical Properties: Vary widely; generally lightweight with high strength-to-weight ratio.
    • Electrical Properties: Can be designed for specific electrical properties, from insulative to conductive.
    • Mechanical Properties: High tensile strength, can be designed for specific load-bearing properties.
    • Corrosive Properties: Generally resistant to corrosion.
    • Flammability: Varies; some are flame retardant, while others are flammable.
    • Cost: Typically more expensive than traditional materials.
    • Application Example: Carbon fiber composites are used in aircraft manufacturing for their strength and lightweight.
  2. Wood:
    • Physical Properties: Natural, varies by type; generally lower strength-to-weight ratio than composites.
    • Electrical Properties: Poor conductor, generally used as an insulator.
    • Mechanical Properties: Varies; generally lower load-bearing capacity.
    • Corrosive Properties: Susceptible to rot and insect damage.
    • Flammability: Flammable.
    • Cost: Generally less expensive.
    • Application Example: Wood can be shaped into furniture, providing natural aesthetics and moderate strength.
  3. Aluminum:
    • Physical Properties: Lightweight, malleable.
    • Electrical Properties: Good conductor.
    • Mechanical Properties: Moderate strength, ductile.
    • Corrosive Properties: Resistant to corrosion due to oxide film.
    • Flammability: Non-flammable.
    • Cost: Moderate.
    • Application Example: Aluminum is used in beverage cans due to its malleability and resistance to corrosion.
  4. Copper:
    • Physical Properties: Malleable, ductile.
    • Electrical Properties: Excellent conductor.
    • Mechanical Properties: Good tensile strength, malleable.
    • Corrosive Properties: Tarnishes but generally resistant to corrosion.
    • Flammability: Non-flammable.
    • Cost: Relatively expensive.
    • Application Example: Copper is widely used in electrical wiring due to its excellent conductivity.
  5. Steel:
    • Physical Properties: High strength, heavy.
    • Electrical Properties: Conductive but not typically used for electrical purposes.
    • Mechanical Properties: High tensile strength, durable.
    • Corrosive Properties: Prone to rust without protective coatings.
    • Flammability: Non-flammable.
    • Cost: Varies, generally cost-effective.
    • Application Example: Steel is used in construction for structural support due to its strength and durability.

In summary, while traditional materials like wood, aluminum, copper, and steel have specific properties that make them suitable for various applications, composite materials offer customizable properties that can be engineered to meet specific needs. This versatility, along with their strength-to-weight ratio and corrosion resistance, makes composites a valuable option in many advanced applications.

Understanding these differences as part of the Composite Materials merit badge helps Scouts appreciate the wide range of materials available and their suitability for different uses.

Composite Materials Merit Badge Requirement 3: Reinforcement and Resins

Describe how composite materials are made. Then do the following:
(a) Discuss three different composite reinforcement materials, their positive and negative characteristics, and their uses. Obtain the SDS for each one and discuss the toxicity, disposal, and safe-handling sections for these materials.
(b) Discuss three different resins used in composites, their positive and negative characteristics, and their uses. Obtain the SDS for each one and discuss the toxicity, disposal, and safe-handling sections for these materials. Include thermoset resins and thermoplastic resins in your discussion.
(c) For each of the three resins you chose for requirement 3b, think of a new application that might be worth developing.

Making Composite Materials

Requirement 3 of the Composite Materials Merit Badge involves describing the process of making composite materials. Understanding how these materials are created is essential for appreciating their unique properties and applications.

How Composite Materials are Made:

  1. Choosing the Matrix and Reinforcement: The first step is selecting the appropriate matrix (the substance in which the reinforcement is embedded) and reinforcement materials. The matrix is typically a polymer resin, like epoxy, polyester, or vinyl ester. The reinforcement could be fibers such as glass, carbon, or aramid.
  2. Preparing the Reinforcement: The reinforcement material is prepared in the required form, which can be fibers, fabrics, mats, or preforms. This preparation depends on the desired properties of the final composite material.
  3. Layering the Reinforcement: The reinforcement is laid out according to the desired shape and structure. In some processes, it might involve weaving fibers into a fabric or mat.
  4. Applying the Matrix: The matrix material is then applied to the reinforcement. This can be done in various ways, such as hand lay-up (where the resin is applied over the reinforcement by hand), spray-up (where resin and reinforcements are sprayed together onto a mold), or through a process like resin transfer molding or vacuum bagging for more complex shapes and higher-quality finishes.
  5. Curing: Once the matrix is applied, the composite needs to cure. Curing is the process where the resin hardens and sets, binding the reinforcement material within it. This process can happen at room temperature or might require heat, depending on the type of resin used.
  6. Finishing: After curing, the composite material may undergo various finishing processes. These can include cutting, drilling, sanding, or coating to achieve the desired size, shape, and surface finish.
  7. Quality Control: Throughout the manufacturing process, quality control is crucial to ensure that the composite material meets the required specifications and performance criteria.

The process of making composite materials involves a combination of chemistry and engineering. The choice of matrix and reinforcement, as well as the manufacturing method, greatly influences the properties of the final composite material, such as its strength, weight, heat resistance, and durability.

By learning how composite materials are made through the Composite Materials merit badge, Scouts gain insight into the fascinating world of material science and engineering. This knowledge enhances their understanding of how different materials can be tailored for specific purposes, reflecting the innovative spirit of scouting.

Reinforcement Materials

Requirement 3a of the Composite Materials Merit Badge involves discussing various composite reinforcement materials, their characteristics, and uses, along with explaining how to obtain Safety Data Sheets (SDS) for these materials.

Different Composite Reinforcement Materials:

  1. Glass Fiber:
    • Positive Characteristics: Inexpensive, widely available, good strength-to-weight ratio, good insulator.
    • Negative Characteristics: Less strength compared to carbon fiber, can shatter or splinter.
    • Uses: Commonly used in boat hulls, automotive parts, and sports equipment.
  2. Carbon Fiber:
    • Positive Characteristics: Very high strength-to-weight ratio, high stiffness, low thermal expansion, corrosion-resistant.
    • Negative Characteristics: Expensive, conductive (can be a disadvantage in certain applications), less impact resistant.
    • Uses: Used in aerospace, high-performance vehicles, sporting goods, and high-end consumer products.
  3. Aramid Fiber (e.g., Kevlar):
    • Positive Characteristics: High strength-to-weight ratio, excellent toughness, good resistance to abrasion and cutting.
    • Negative Characteristics: Difficult to cut and process, water absorption, expensive.
    • Uses: Used in bulletproof vests, military helmets, aerospace, and high-performance sporting equipment.
  4. Basalt Fiber:
    • Positive Characteristics: Good mechanical properties, excellent thermal resistance, eco-friendly.
    • Negative Characteristics: Less known and studied compared to other fibers, limited availability.
    • Uses: Fire protection, automotive, and industrial applications.
  5. Natural Fibers (e.g., flax, hemp):
    • Positive Characteristics: Environmentally friendly, renewable, low cost, good insulation properties.
    • Negative Characteristics: Lower mechanical properties compared to synthetic fibers, variability in quality.
    • Uses: Automotive interior parts, building materials, consumer goods.

How to Obtain SDS for Composite Materials: Safety Data Sheets are crucial for understanding the health and safety aspects of materials used in composites. Here’s how Scouts can obtain SDS:

  1. Manufacturer’s Website: Most manufacturers provide SDS for their products on their websites. Look for a section often labeled “Safety Data Sheets,” “Product Safety,” or similar.
  2. Supplier or Distributor: If you purchase the material from a supplier or distributor, they should provide the SDS either with the product or upon request.
  3. Request from Manufacturer: If you cannot find the SDS online, contact the manufacturer directly and request it. Manufacturers are usually obliged to provide these sheets to users of their products.
  4. Online Databases: There are various online databases and websites where you can search for and download SDS for a wide range of materials.

Understanding the characteristics and applications of different reinforcement materials in composites, along with knowing how to access their Safety Data Sheets, is vital for Scouts. This knowledge gained from the Composite Materials merit badge ensures safe handling and informed use of these materials in projects and experiments.

Resins

Requirement 3b of the Composite Materials Merit Badge requires discussing three different resins used in composites, including both thermoset and thermoplastic resins, their characteristics, uses, and details from their Safety Data Sheets (SDS) regarding toxicity, disposal, and safe handling.

Different Resins Used in Composites:

  1. Epoxy Resin (Thermoset):
    • Positive Characteristics: Excellent adhesive properties, high strength and stiffness, good resistance to moisture and chemicals.
    • Negative Characteristics: Can be expensive, requires careful mixing and curing, potential skin irritant.
    • Uses: Widely used in aerospace, automotive, marine, and sports equipment.
  2. Polyester Resin (Thermoset):
    • Positive Characteristics: Relatively inexpensive, easy to use, quick curing.
    • Negative Characteristics: Less strength and durability compared to epoxy, can be brittle, prone to shrinkage.
    • Uses: Common in boat building, automotive parts, and fiberglass products.
  3. Polyethylene (Thermoplastic):
    • Positive Characteristics: High impact resistance, flexible, recyclable, resistant to chemicals.
    • Negative Characteristics: Lower melting point, not as rigid as thermosets, can degrade in UV light.
    • Uses: Used in consumer goods, piping, containers, and certain types of body armor.

Safety Data Sheets (SDS) Details:

For each resin, Scouts should obtain the SDS to understand their toxicity, disposal, and safe-handling recommendations. Here’s a general overview of what these sections might contain:

  1. Toxicity:
    • Typically, the SDS will describe any toxic effects from inhalation, skin contact, or ingestion. Epoxy and polyester resins can cause skin irritation or allergic reactions, and fumes can be harmful if inhaled.
  2. Disposal:
    • The SDS will provide guidance on how to dispose of the resin safely, emphasizing that it should not be released into the environment and should be disposed of as hazardous waste according to local regulations.
  3. Safe-Handling:
    • This section includes recommendations for handling the resin safely, such as using in well-ventilated areas, wearing appropriate personal protective equipment (PPE) like gloves and safety glasses, and avoiding skin contact.

Note for Scouts: To complete this Composite Materials merit badge requirement fully, you should obtain the actual SDS for specific epoxy, polyester, and polyethylene resins. This will provide the detailed information needed and give insight into the process of assessing materials for safety in practical applications.

Understanding the properties of different resins and how to handle them safely is essential in the world of composites. This knowledge ensures that Scouts can work responsibly and safely with these materials in their projects.

Applications

Requirement 3c of the Composite Materials Merit Badge encourages Scouts to think creatively about new applications for the three types of resins discussed in requirement 3b: epoxy resin, polyester resin, and polyethylene. This task fosters innovation and problem-solving skills.

Here are some examples to help you start brainstorming:

  • Epoxy Resin:
    • Application Idea: Advanced Biodegradable Packaging
    • Concept: Develop a biodegradable, strong, and lightweight packaging material using epoxy resin combined with natural fibers (like hemp or bamboo). This packaging material would be suitable for heavy-duty applications while being environmentally friendly. By modifying the epoxy resin to enhance its biodegradability without compromising its strength, this new composite could be an excellent alternative to traditional plastic packaging, especially in industries where strength and durability are essential.
  • Polyester Resin:
    • Application Idea: Eco-Friendly Building Panels
    • Concept: Create a new type of building panel made from recycled polyester resin and reinforced with recycled glass fibers. These panels would be cost-effective, durable, and suitable for use in constructing affordable housing. They would offer a sustainable construction material choice, utilizing recycled materials and reducing waste. Additionally, the panels could be designed to provide good insulation, reducing energy costs for heating and cooling.
  • Polyethylene:
    • Application Idea: Self-Healing Automotive Parts
    • Concept: Develop a new type of polyethylene composite for automotive parts that have self-healing properties. By incorporating microcapsules filled with a healing agent into the polyethylene matrix, minor scratches or damages to car bumpers or body panels could be repaired automatically, extending the life of the parts and reducing maintenance costs. This application would be particularly valuable in extending the longevity of vehicles, contributing to sustainability in the automotive industry.

These ideas are just starting points to spark creativity and innovative thinking. Scouts are encouraged to think broadly and consider how advancements in composite materials can address current challenges in different industries or areas of life.

Composite Materials Merit Badge Requirement 4: Manufacturing

With your parent’s permission and your counselor’s approval do ONE of the following:
(a) Visit a company that manufactures or repairs products made with composites. Discuss what you learn with your counselor
(b) Find three composites-related websites. Share and discuss what you learn with your counselor.

Learning about Manufacturing

Requirement 4 of the Composite Materials Merit Badge encourages Scouts to actively engage with the real-world application of composites through visits and online research. Here are some tips for both parts of this requirement:

4a: Visiting a Company that Manufactures or Repairs Composite Products:

  1. Pre-Visit Research: Learn about the company you’re visiting. Understand what products they make or repair and what composite materials they use.
  2. Prepare Questions: Create a list of questions to ask during your visit. This could include inquiries about the types of composites they use, their manufacturing or repair processes, and any challenges they face.
  3. Observe Safety Protocols: Pay attention to safety briefings and wear any required protective gear during your visit.
  4. Take Notes: During the visit, take detailed notes on what you see and learn. Pay attention to the different stages of manufacturing or repair.
  5. Reflect and Discuss: After the visit, reflect on what you learned. How do the processes you saw compare to what you’ve studied? Discuss your observations and insights with your counselor.

4b: Researching Composites-Related Websites:

  1. Select Reputable Sources: Look for websites of well-known organizations in the field of composites, such as educational institutions, industry associations, or leading companies.
  2. Diverse Information: Try to cover different aspects of composites, such as new advancements, different types of composites, their uses, and challenges in the field.
  3. Take Notes: While researching, take detailed notes about interesting facts, innovations, or any specific information that stands out.
  4. Critically Evaluate Information: Be discerning about the information you find. Consider the source’s credibility and the information’s relevance and accuracy.
  5. Discuss Your Findings: Share your findings with your counselor. Discuss how the information you found online enhances your understanding of composites and their applications in the real world.

Remember, these activities are opportunities to deepen your understanding of composite materials and their role in modern technology and industry. Approach them with curiosity and a willingness to learn.

Composite Materials Merit Badge Requirement 5: Projects

Do the following:
(a) Use composite materials to complete two projects, at least one of which must come from the Composite Materials merit badge pamphlet. The second project may come from the pamphlet OR may be one you select on your own that has been approved by your counselor in advance.
(b) With your counselor’s assistance, find an appropriate site where the projects can be safely completed under your counselor’s supervision and/or the supervision of an adult approved by your counselor who is knowledgeable about composites.
(c) With your counselor, determine how the finished projects will be evaluated. Using those guidelines, evaluate the completed projects with your counselor.

Composite Materials Projects

Requirement 5a of the Composite Materials Merit Badge encourages Scouts to come up with a project idea that utilize composite materials. These projects should be achievable and allow Scouts to apply their knowledge of composites in a practical way. Here are some suggestions to get you thinking:

  • Composite Coasters: Create a set of coasters using a simple composite material like a resin mixed with a reinforcement like colored fibers or small pieces of glass. This project is great for learning about the basics of resin use and curing.
  • Miniature Composite Bridge Model: Construct a small-scale model of a bridge using composite materials like fiberglass or carbon fiber. This project can teach about the structural properties of composites and their application in engineering.
  • Composite Picture Frame: Make a picture frame using composite materials, incorporating designs with different types of fibers for aesthetic appeal. This project allows for creativity in design while learning about composite molding and setting.
  • Homemade Skateboard or Longboard: Build a simple skateboard or longboard deck using layers of wood veneer and epoxy resin. This more advanced project can demonstrate the strength and flexibility of composite materials.
  • Recycled Plastic Bottle Composite: Create a small stool or decorative item using recycled plastic bottles combined with a resin. This project can also highlight the importance of recycling and sustainability in composites.
  • Composite Plant Pots: Fabricate plant pots using a composite mixture, possibly incorporating natural fibers for reinforcement. This is an excellent project for understanding the weather-resistant properties of composites.

Each of these projects offers a hands-on experience with composite materials, helping Scouts to understand their properties, how they are worked with, and how they can be applied in everyday objects. Always remember to follow safety guidelines, especially when handling resins and other potentially hazardous materials.

Composite Materials Merit Badge Requirement 6: Careers

 Find out about three career opportunities in composite materials. Pick one and find out the education, training, and experience required for this profession. Discuss this with your counselor, and explain why this profession might interest you.

Careers in Composite Materials

The field of composite materials offers a wide range of exciting career opportunities. Professionals in this area work on the development, production, and application of composite materials in various industries. Here’s a list of some careers in composite materials to consider for Composite Materials merit badge requirement 6:

  1. Composite Materials Engineer: Specializes in developing and testing new composite materials. They work on improving the performance and production processes of composites.
  2. Materials Scientist: Conducts research to understand and enhance the properties of composite materials. They may work in R&D departments of companies or in academic settings.
  3. Composite Design Engineer: Focuses on designing products or components that use composite materials, often using computer-aided design (CAD) software.
  4. Quality Control Engineer: Ensures that composite materials and products meet required specifications and quality standards.
  5. Manufacturing Engineer: Oversees the production process of composite materials or products, working to improve efficiency and resolve production issues.
  6. Aerospace Engineer: Uses composite materials to design and build aircraft and spacecraft components, where weight and strength are critical.
  7. Automotive Engineer: Develops automotive parts using composite materials to enhance performance and fuel efficiency.
  8. Wind Energy Engineer: Designs and tests wind turbine blades made from composite materials, focusing on durability and efficiency.
  9. Marine Engineer: Applies composite materials in the design and construction of boats, ships, and marine structures, utilizing their resistance to corrosion and strength.
  10. Research and Development (R&D) Technician: Assists in the development and testing of new composite materials and processes in industrial or academic research settings.
  11. Sales Engineer for Composite Materials: Combines technical knowledge of composites with sales skills to promote and sell composite materials and products.
  12. Composite Technician/Fabricator: Hands-on role in fabricating and repairing composite materials, often in aerospace, automotive, and sports equipment industries.
  13. Environmental Engineer: Works on developing sustainable and eco-friendly composite materials and recycling methods.
  14. Lecturer or Educator: Specializes in teaching the science and application of composite materials in academic institutions.

These careers require a mix of skills and knowledge in materials science, engineering, design, and technology. Working in composites can be highly rewarding, as it involves being at the forefront of material innovation and its application in cutting-edge industries.

Scouts interested in these careers can pursue relevant education in fields like materials science, engineering, or applied sciences. Remember, Scouts, the world of composite materials is full of opportunities to innovate and make a significant impact!

Related Resources

Whoosh! Scouts BSA Nova Award (Engineering)

The Composite Materials merit badge complements the Whoosh! Nova Award by providing a deep dive into an essential aspect of modern engineering – composite materials. Since this Nova Award focuses on engineering and motion, understanding composite materials can enhance a Scout’s knowledge about how these materials are crucial in designing objects that involve motion, such as vehicles or amusement park rides. The badge’s focus on material properties and manufacturing processes directly contributes to a Scout’s understanding of engineering principles.

Designed to Crunch Scouts BSA Nova Award (Mathematics)

While the Designed to Crunch Nova Award is focused on mathematics, the Composite Materials merit badge intersects with this by offering practical applications where mathematical concepts are used. For instance, understanding the strength-to-weight ratios of materials, calculating material requirements for a project, or analyzing the properties of different composites involves mathematical skills.

Next Big Thing Scouts BSA Nova Award (Product Design)

In the context of the Next Big Thing Nova Award, which focuses on product design, the Composite Materials merit badge provides essential knowledge about material selection and properties. Understanding the characteristics of composite materials can significantly influence the design process of new products, especially when considering factors like strength, weight, and durability.

Dr. Bernard Harris Supernova Award

Earning the Composite Materials merit badge can contribute to the requirements of the Dr. Bernard Harris Supernova Award. As this award requires Scouts to earn STEM-related merit badges, the Composite Materials badge, with its strong focus on material science (a key STEM area), is a valuable addition. The knowledge and skills gained from this badge can help Scouts in their Supernova activities, particularly those involving scientific and technical understanding.

Thomas Edison Supernova Award

For Scouts working towards the Thomas Alva Edison Supernova Award, the Composite Materials merit badge offers an advanced understanding of a specialized STEM field. This knowledge can be invaluable in completing the required Supernova activities, which are designed to challenge Scouts’ understanding and application of STEM concepts in real-world scenarios.

Frequently Asked Questions

What are composite materials?

Composite materials are made by combining two or more different materials to create a new material with improved properties. These typically include a matrix (like a resin) and a reinforcement (like fibers).

Why is the Composite Materials merit badge important?

The Composite Materials merit badge helps Scouts understand the science and application of composite materials, which are increasingly used in various industries. It encourages interest in STEM fields and teaches practical skills and safety awareness.

What will I learn by earning the Composite Materials merit badge?

You’ll learn about different types of composite materials, their properties, how they are made, and their applications. You’ll also learn about safety considerations and careers related to composite materials.

Are there any prerequisites for the Composite Materials merit badge?

There are no specific prerequisites for the Composite Materials merit badge, but a basic understanding of science and materials can be helpful. It’s also important to have access to appropriate safety equipment for certain requirements.

What kind of projects will I do for the Composite Materials merit badge?

Projects for the Composite Materials merit badge can vary but typically involve creating something using composite materials. This could be a small-scale model, a piece of sporting equipment, or a practical item like a coaster.

Is there any special equipment needed for the Composite Materials merit badge?

Depending on the projects you choose for the Composite Materials merit badge, you will need specific materials like resins, fibers, and safety equipment like gloves and goggles.

How can I ensure safety while working on the Composite Materials merit badge?

Always follow the safety guidelines provided in the Composite Materials merit badge pamphlet, use personal protective equipment, work in a well-ventilated area, and have adult supervision.

Can I complete the Composite Materials merit badge on my own?

While you can do some research and small projects on your own, you need to work with a Composite Materials merit badge counselor for guidance and to fulfill all the requirements.

How long does it typically take to complete the Composite Materials merit badge?

The time can vary depending on your project’s complexity and your pace, but typically it might take several weeks to a few months to complete the Composite Materials merit badge.

Remember, Scouts, earning the Composite Materials merit badge is not just about completing the requirements; it’s about exploring new knowledge areas and skills that can be valuable for your future!

Shape the Future

As we conclude our exploration of the Composite Materials merit badge, it’s clear that this badge offers far more than a simple introduction to an exciting field of material science. It provides Scouts with a unique opportunity to delve into the world of innovative materials that shape our modern life. From the basic understanding of what composites are to the complexities of how they are manufactured, used, and disposed of, this merit badge lays a strong foundation for both intellectual curiosity and practical application.

Scouts engaging with this badge not only learn about the technical aspects of composite materials but also develop a deeper appreciation for the importance of safety, environmental responsibility, and the endless potential of human innovation. The projects and activities associated with this badge encourage creativity, problem-solving, and hands-on learning, skills that are invaluable in both scouting and life.

Furthermore, the exploration of career opportunities in the field of composites opens up new horizons for Scouts, highlighting the exciting possibilities that lie in STEM fields. It’s a badge that not only educates but also inspires, pushing Scouts to think about how materials can be used to solve problems, improve our world, and drive progress.

In summary, the Composite Materials merit badge is more than just an achievement; it’s a journey into a field that is shaping the future. It’s a testament to the Boy Scouts of America’s commitment to providing educational, relevant, and forward-thinking programs for its members. As Scouts continue to earn this badge, they’re not just gaining a badge for their sash; they’re gaining insights and skills that will benefit them for years to come.

Keep exploring, keep learning, and remember, every new skill and piece of knowledge you acquire through scouting helps pave the way for a bright, innovative future.

Comments

Leave a Reply

Your email address will not be published. Required fields are marked *
