Radio Merit Badge

The Radio merit badge helps Scouts learn about communication and technology. Radio is an important way people share information, stay connected, and even have fun. Scouts who work on this badge explore how radio works and how it is used in everyday life. They also learn about careers and hobbies related to radio.

Scouts earning the Radio merit badge gain hands-on experience with equipment and signals. They learn about different types of radios, such as amateur (ham) radios and broadcast radios. This helps them understand how voices and messages travel through the air and reach listeners. These skills are useful and can even lead to new hobbies or career ideas.

Working on the Radio merit badge also helps Scouts improve problem-solving and critical thinking. They learn to set up and use radio equipment, which requires attention to detail and careful planning. Scouts also develop communication skills as they practice speaking clearly over the radio.

The Radio merit badge opens the door to a fascinating world of technology and communication. Scouts discover how radio has shaped history and continues to impact the world today. It’s a fun and educational badge that teaches skills they can use now and in the future.

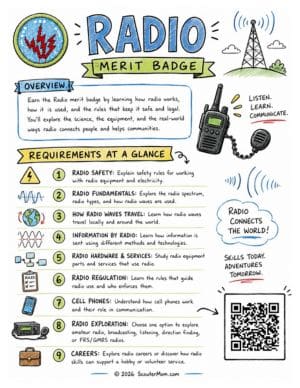

Download the Radio Merit Badge Requirements

Radio Merit Badge Workbook / Worksheet

Radio Merit Badge Check Off Sheet: Amateur Radio Option

Radio Merit Badge Check Off Sheet: Radio Broadcasting Option

Radio Merit Badge Check Off Sheet: Shortwave and Medium-Wave Listening Option

Radio Merit Badge Check Off Sheet: Amateur Radio Direction Finding Option

Checklist for All Merit Badges

Help with Answers for Radio Merit Badge Requirements

Find specific helps for some of the Radio merit badge requirements listed below. Some of these resources will just give the answers. Others will provide engaging ways for older Scouts to introduce these concepts to new Scouts.

Scouts must complete ONE of the options for requirement 9 (a, b, c, or d).

• Requirement 1: About Radio
• Requirement 2: Types of Radio
• Requirement 3: Frequencies
• Requirement 4: Transmitting Information
• Requirement 5: Technical
• Requirement 6: Safety
• Requirement 7: Visit
• Requirement 8: Careers
• Requirement 9a: Amateur Radio Option
• Requirement 9b: Radio Broadcasting Option
• Requirement 9c: Shortwave and Medium Wave Listening Option
• Requirement 9d: Amateur Radio Direction Finding Option
• More Resources

What Is Radio?

Radio is a way to send sounds, voices, and even data through the air without wires. It works by using invisible waves, called radio waves, to carry signals from one place to another. These signals can be received by radios, televisions, or even cell phones. Radio is used in many ways, such as listening to music, talking to others with walkie-talkies, or sharing important information in emergencies.

When working on the Radio merit badge, Scouts learn about how radio waves are made and how they travel. Radio waves come from a transmitter, which is a device that sends signals. The signals are picked up by a receiver, like a car radio or a smartphone. The radio waves move through the air at the speed of light, making it possible for people to communicate over long distances.

There are different types of radio communication. Broadcast radio sends music, news, and shows to large audiences. Amateur radio, also called ham radio, is for people who enjoy talking to others around the world as a hobby. Two-way radios, like walkie-talkies, are often used by police, firefighters, and Scouts during events. Learning about these types of radio helps Scouts understand how radio impacts everyday life and why it is still important.

Understanding what radio is and how it works is an exciting part of earning the Radio merit badge. It gives Scouts a chance to explore technology, communication, and science in a fun and hands-on way.

Broadcast Radio vs. Hobby Radio

When working on the Radio merit badge, Scouts learn about two types of radio communication: broadcast radio and hobby radio. Each has its own purpose and works in different ways. Understanding these differences will help Scouts complete the Radio merit badge and see how radio is used in everyday life and for fun.

Broadcast Radio

Broadcast radio is used to send information to large audiences. It includes AM and FM radio stations that play music, news, and talk shows. These stations use powerful transmitters to send signals that can reach thousands of people over wide areas.

• Purpose: Share news, music, and entertainment with the public.
• Audience: Everyone with a radio in the broadcast range.
• Example: A local FM station playing your favorite songs.

Hobby Radio

Hobby radio, also called amateur or ham radio, is used for personal communication and fun. It allows people to talk with others across town or around the world. Amateur radio operators use special equipment and licenses to communicate.

• Purpose: Personal communication, learning, and experimentation.
• Audience: Other licensed hobby radio users.
• Example: A Scout using a ham radio to connect with someone in another country.

Broadcast radio focuses on sharing information with many people, while hobby radio is about making personal connections and learning new skills. Both types of radio are interesting and play a role in communication. By exploring both, Scouts earning the Radio merit badge can better understand the different ways people use radio technology.

Broadcasting vs. Two-Way Communications

The Radio merit badge helps Scouts understand how radio is used for different purposes. Two common types of radio communication are broadcasting and two-way communications. These serve different needs and work in different ways. Knowing the differences between them is an important step in completing the Radio merit badge.

Broadcasting

Broadcasting is a one-way form of communication. A station sends out a signal to many listeners at the same time, but those listeners cannot respond directly to the broadcaster. Broadcasting is often used to share information, news, and entertainment with large audiences.

• Direction: One-way communication from the sender to many listeners.
• Purpose: Share information, music, or programs.
• Example: A radio station playing a talk show for the public.

Two-Way Communications

Two-way communications allow people to send and receive messages. This type of communication is interactive and is used for conversations or sharing information between two or more people. It’s common in emergency services, businesses, and even for fun with walkie-talkies.

• Direction: Two-way communication where both sides can talk and listen.
• Purpose: Exchange messages or have conversations.
• Example: A Scout using a two-way radio to coordinate during a camping trip.

Broadcasting is best for reaching many people at once, while two-way communication is ideal for direct conversations. Both are important and have unique uses in daily life. By exploring these types of communication, Scouts working on the Radio merit badge gain a better understanding of how radio technology keeps people connected.

Understanding Radio Station Call Signs

Call signs are unique identifiers used by radio stations and amateur radio operators. They are like names for radio stations and are required by law to help identify who is transmitting. Learning about call signs is an important part of the Radio merit badge because it shows Scouts how radio stations and operators follow rules to keep communication organized and legal.

Broadcast Radio Call Signs

Broadcast radio stations use call signs to identify themselves on the air. In the United States, these call signs usually start with the letter “K” for stations west of the Mississippi River and “W” for stations east of it. They are followed by a combination of letters, such as “WXYZ” or “KABC.” You’ll often hear a station’s call sign announced between songs or programs.

• Purpose: Identifies the station for listeners and regulators.
• Example: A local FM station might have a call sign like “KJAZ.”

Amateur Radio Call Signs

Amateur radio, also known as ham radio, also uses call signs to identify operators. These call signs are assigned by the government and are unique to each operator. They include letters and numbers that show where the operator is from and their license level. For example, a call sign like “W1ABC” might be for an operator in the northeastern United States.

• Purpose: Helps operators identify themselves during conversations.
• Example: A Scout earning the Radio merit badge might use a ham radio to contact someone with a call sign like “N3XYZ.”

Call signs make it easier to know who is speaking and ensure everyone follows the rules. Whether you’re listening to a broadcast station or talking to someone with a ham radio, call signs keep radio communication organized and clear. Understanding call signs helps Scouts working on the Radio merit badge appreciate how radio systems are managed worldwide.

The Phonetic Alphabet: Communicating Clearly

The phonetic alphabet is a tool used to make communication clear, especially when speaking over radios. Each letter of the alphabet is matched with a word, so letters can be understood even if the signal is weak or there’s noise. This is an important part of the Radio merit badge because it helps Scouts learn how to communicate effectively in real-world situations.

Here is the phonetic alphabet:

• A: Alpha
• B: Bravo
• C: Charlie
• D: Delta
• E: Echo
• F: Foxtrot
• G: Golf
• H: Hotel
• I: India
• J: Juliett
• K: Kilo
• L: Lima
• M: Mike
• N: November
• O: Oscar
• P: Papa
• Q: Quebec
• R: Romeo
• S: Sierra
• T: Tango
• U: Uniform
• V: Victor
• W: Whiskey
• X: X-ray
• Y: Yankee
• Z: Zulu

The phonetic alphabet is used when letters need to be spelled out. For example, instead of saying “S-M-I-T-H” on a noisy radio, you would say “Sierra-Mike-India-Tango-Hotel.” This makes sure the message is understood even if the connection isn’t perfect.

By practicing the phonetic alphabet, Scouts can improve their communication skills. It is especially useful in emergencies or during activities where clear communication is important, like Scouting events or service projects. Learning the phonetic alphabet is a key part of the Radio merit badge and helps Scouts become more confident in using radios.

How Radio Waves Travel Locally and Globally

Radio waves are used to send signals both locally and across the world. Learning how these waves travel is an important part of earning the Radio merit badge. By understanding local and global transmission, Scouts can see how radio connects people near and far.

Local Radio Waves
Locally, radio waves travel in straight lines from a transmitter, such as a radio tower, to a receiver, like a car radio. These waves, called ground waves, can reach nearby areas and are often used for FM and AM radio. However, local radio waves have limits because they can’t bend around large objects like hills or mountains.

Global Radio Waves
To reach longer distances, radio waves can bounce off the ionosphere, a layer of Earth’s atmosphere. This process, called skywave propagation, allows signals to travel around the world. Amateur (ham) radio operators often use this method to talk with others far away.

By learning how radio waves travel locally and globally, Scouts working on the Radio merit badge gain a better understanding of how communication works over short and long distances. This knowledge helps them see the science behind radio and how it connects the world.

Using WWV and WWVH to Understand Shortwave Radio Reception

WWV and WWVH are radio stations run by the National Institute of Standards and Technology (NIST). They broadcast signals that provide time and frequency information, but they can also help you understand shortwave radio reception. Learning about these stations is an important part of the Radio merit badge because they show how shortwave signals behave and what you might hear on your radio.

What WWV and WWVH Broadcast
WWV is located in Colorado, and WWVH is in Hawaii. Both stations broadcast signals on specific shortwave frequencies (like 5 MHz, 10 MHz, and 15 MHz). These signals include time announcements and a tone that you can tune into. Because they use shortwave, their signals can travel long distances by bouncing off the ionosphere.

How They Help with Shortwave Radio
By listening to WWV and WWVH, you can learn about current shortwave reception conditions:

• Signal Strength: If you hear these stations clearly, shortwave signals on similar frequencies are likely strong and reliable.
• Time of Day: Shortwave signals travel differently depending on whether it’s day or night. WWV and WWVH give you a sense of which frequencies work better at certain times. For example, higher frequencies (like 15 MHz) tend to work better during the day, while lower frequencies (like 5 MHz) are better at night.

Understanding how WWV and WWVH broadcasts work helps Scouts earning the Radio merit badge explore the science of shortwave radio. This knowledge makes it easier to tune in and enjoy the wide world of shortwave communication.

Understanding Distant (DX) and Local Radio Stations

When working on the Radio merit badge, Scouts learn about the difference between distant (DX) and local radio stations. These terms describe how far the signal travels and the purpose of the station’s broadcasts. Knowing the difference helps Scouts understand radio communication and how stations serve different needs.

Local Stations
Local radio stations are designed to serve nearby areas, usually within a city or a few surrounding towns. Their signals don’t travel far because they use lower power or higher frequencies that don’t carry over long distances. Local stations are great for sharing news, weather updates, and entertainment specific to a community.

• Range: Covers a small area, typically up to 50 miles.
• Purpose: Focuses on local audiences with content like city news or community events.
• Example: A station in your town playing local sports games.

Distant (DX) Stations
Distant stations, also called DX stations, are heard far from their original location. DX signals often come from other states or even other countries. These stations use high power or take advantage of the ionosphere to make their signals travel long distances. Amateur radio operators and shortwave listeners often enjoy tuning in to DX stations as a hobby.

• Range: Travels hundreds or even thousands of miles.
• Purpose: Reaches wide audiences or connects people over long distances.
• Example: A shortwave station broadcasting internationally.

By understanding the difference between DX and local stations, Scouts working on the Radio merit badge see how radio connects people both nearby and far away. It also helps them explore the science and fun of tuning in to different types of stations.

The Role of the FCC and the ITU

When working on the Radio merit badge, Scouts learn about the organizations that regulate and manage radio communication. Two key organizations are the Federal Communications Commission (FCC) and the International Telecommunication Union (ITU). Each has a different role in keeping radio communication organized and useful for everyone.

The Federal Communications Commission (FCC)
The FCC is a U.S. government agency that regulates radio, television, and other forms of communication within the United States. Its job is to make sure people and businesses follow the rules for using the airwaves. The FCC issues licenses for amateur radio operators, sets limits on who can broadcast and on what frequencies, and enforces rules to prevent interference between signals.

• Focus: Manages communication inside the United States.
• Example: Granting licenses to amateur radio operators and ensuring radio stations follow the rules.

The International Telecommunication Union (ITU)
The ITU is a global organization that works with countries around the world. It helps set international rules for radio communication, including what frequencies are used for specific purposes, like emergency communication or broadcasting. The ITU ensures that countries can use radio waves without interfering with each other.

• Focus: Coordinates communication between countries worldwide.
• Example: Assigning frequencies for international shortwave broadcasting.

The FCC focuses on communication within the U.S., while the ITU handles global coordination. By understanding these organizations, Scouts working on the Radio merit badge see how radio is managed locally and internationally, helping people stay connected in an organized way.

Understanding the Electromagnetic Spectrum and Radio Services

The electromagnetic spectrum covers a wide range of frequencies, including those used for radio communication. Scouts working on the Radio merit badge explore parts of the spectrum from 300 kHz to 3000 MHz. This range includes the MF, HF, VHF, UHF, and microwave bands, each with different uses in broadcasting and communication.

Frequency Bands

• MF (Medium Frequency): Includes AM radio broadcasts.
• HF (High Frequency): Used for amateur radio and citizens band (CB) radio.
• VHF (Very High Frequency): Covers FM radio, TV channels, and some amateur radio bands.
• UHF (Ultra High Frequency): Used for TV channels, public services like police and fire, and more.
• Microwave: Often used for specialized communications like satellite and radar.

Radio Services
The chart also shows where specific radio services are located on the spectrum:

• AM Broadcast: Found in the MF band (540–1600 kHz).
• FM Broadcast: Found in the VHF band (88–108 MHz).
• Citizens Band (CB): Located in the HF band around 27 MHz.
• Television Channels 2-6: Found in the VHF band (54–88 MHz).
• Amateur Radio: Includes the 40m band (7–7.3 MHz), 80m band (3.5–4 MHz), 10m band (28–29.7 MHz), and the 2m band (144–148 MHz).
• Public Service: Found in the UHF band (450–470 MHz) for police and fire services.

By studying the electromagnetic spectrum and identifying these radio services, Scouts gain a better understanding of how different frequencies are used. This helps them complete the Radio merit badge and appreciate the science behind communication technology.

How Radio Waves Carry Information

Radio waves carry information by turning sounds or signals into electromagnetic waves that travel through the air. These waves are sent out by a transmitter and picked up by a receiver. Understanding how this process works is an important part of the Radio merit badge because it helps Scouts learn the basics of communication technology.

The Transmitter
A transmitter is the device that sends out the radio waves. It takes sounds, such as someone’s voice or music, and changes them into electrical signals. These signals are then sent to an amplifier, which makes them strong enough to travel long distances. From there, the signals go to an antenna, which turns them into electromagnetic waves and sends them into the air.

The Receiver
The receiver is the device that catches the radio waves sent by the transmitter. The waves are captured by the receiver’s antenna and turned back into electrical signals. The receiver processes these signals and plays them as sounds or displays them as data, depending on the type of communication.

The Transceiver
A transceiver is a device that combines both a transmitter and a receiver. It can send and receive radio signals, making it useful for two-way communication, like in amateur radio. Scouts using transceivers during the Radio merit badge learn how to talk and listen using the same equipment.

By understanding how transmitters, receivers, antennas, amplifiers, and transceivers work together, Scouts earning the Radio merit badge can see how information travels over the air. This knowledge is key to exploring radio communication and discovering its many uses.

How Information Is Stored in Radio Waves

Radio waves carry information by changing their properties to match the sounds, data, or signals being sent. This process is called modulation. Learning about modulation is important for the Radio merit badge because it helps Scouts understand how messages travel through the air and reach their destination.

Modulation
Modulation changes one or more parts of the radio wave to carry information. A basic radio wave, called a carrier wave, is like a blank slate. When it’s modulated, it stores the information. There are two common ways to modulate a wave:

• Amplitude Modulation (AM): The height of the wave (amplitude) changes to match the sound or signal. This is how AM radio stations send music or voices.
• Frequency Modulation (FM): The number of waves per second (frequency) changes to carry the signal. FM is often used for music and clearer sound.

Storing Digital Information
For digital signals, like those used in modern communication, the wave is modulated in patterns that represent ones and zeros (binary code). These patterns are decoded by the receiver to recreate the original information, like text, images, or sound.

Why It Works
The antenna sends the modulated wave into the air, and the receiver’s antenna picks it up. The receiver decodes the modulation and turns it back into sound, data, or images that people can use. This process works for everything from AM/FM radio to television, cell phones, and Wi-Fi.

By understanding how information is stored in waves through modulation, Scouts earning the Radio merit badge learn the science behind communication. This knowledge helps them appreciate the technology they use every day.

Block Diagrams vs. Schematic Diagrams

When working on the Radio merit badge, Scouts learn about diagrams used to show how electronic devices like radios work. Two common types are block diagrams and schematic diagrams. Each serves a different purpose, and understanding them is important for completing the Radio merit badge.

Block Diagrams
A block diagram is a simple drawing that shows the basic parts of a system and how they connect. It uses labeled blocks to represent components, like a transmitter, receiver, or antenna. Lines or arrows between the blocks show how signals move through the system. Block diagrams are great for giving a big-picture overview of how something works without going into technical details.

• Purpose: Shows the main parts and their relationships.
• Example: A radio system might include blocks for the antenna, tuner, amplifier, and speaker.
• Use: Helps people understand how the system works without technical knowledge.

Schematic Diagrams
A schematic diagram is much more detailed and uses symbols to show how individual components, like resistors, capacitors, and transistors, are connected. It’s like a technical map that shows exactly how to build or repair the system. Schematic diagrams are used by engineers, technicians, and hobbyists who need to understand the inner workings of a device.

• Purpose: Provides detailed technical information for building or fixing.
• Example: A schematic of a radio might show every wire, resistor, and circuit connection.
• Use: Helps with designing, troubleshooting, and repairing equipment.

Key Differences
Block diagrams focus on simplicity and the big picture, while schematic diagrams dive into the details. Both are useful, but they serve different purposes depending on who needs the information.

By learning about block diagrams and schematic diagrams, Scouts earning the Radio merit badge develop a better understanding of how radios and other electronic systems are designed and explained. This knowledge helps them appreciate the science and technology behind communication.

A Block Diagram of a Radio Station

This block diagram shows the basic components of a radio station and how they are connected. It helps Scouts working on the Radio merit badge understand the flow of signals in a communication system.

Components in the Diagram

• Microphone: Captures sound, such as a voice, and converts it into electrical signals.
• Transceiver: Processes the signal for transmission and also allows two-way communication.
• Amplifier: Boosts the signal’s strength so it can travel farther.
• Feed Line: Carries the amplified signal from the transceiver to the antenna.
• Antenna: Converts the electrical signal into radio waves and sends them into the air.

The diagram shows how signals move step by step, starting from the microphone and ending at the antenna. By learning about this flow, Scouts earning the Radio merit badge gain a better understanding of how radio communication works in real-world applications.

How Information is Sent with Different Modulation Methods

When working on the Radio merit badge, Scouts learn about different ways information can be sent using radio waves. These methods include amplitude modulation (AM), frequency modulation (FM), continuous wave (CW) Morse code, single sideband (SSB) transmission, and digital transmission. Each method has its own way of storing information in the radio waves.

Amplitude Modulation (AM)
In AM, the height of the radio wave (amplitude) changes to match the sound or signal being sent. The frequency of the wave stays the same. AM is commonly used for broadcasting radio programs like music and news. It’s a simple way to send information but can be affected by static or interference.

Frequency Modulation (FM)
In FM, the number of waves per second (frequency) changes to carry the information, while the wave’s height stays the same. This method provides clearer sound and is used for FM radio broadcasts. FM is less affected by interference, making it better for music and high-quality audio.

Continuous Wave (CW) Morse Code
CW uses a simple on-and-off signal to send messages in Morse code. Each dot and dash represents a letter or number. This is one of the oldest forms of radio communication and is still used in amateur radio. It’s a reliable way to send messages over long distances with minimal equipment.

Single Sideband (SSB) Transmission
SSB is a more efficient form of AM. Instead of sending the full AM signal, SSB transmits only one side of the wave and removes the carrier signal. This uses less power and allows for clearer communication. SSB is commonly used in amateur radio for long-distance communication.

Digital Transmission
Digital transmission turns information into a series of ones and zeros (binary code) and sends it using radio waves. This method is used for modern technologies like cell phones, Wi-Fi, and some forms of amateur radio. Digital signals are very efficient and can carry a lot of information, like text, images, and videos.

By exploring these different methods, Scouts earning the Radio merit badge learn how radio waves can carry information in many ways. This helps them understand the science of communication and its practical uses in daily life and emergencies.

How NOAA Weather Radio Alerts You to Danger

NOAA Weather Radio (NWR) is a nationwide network of radio stations that broadcast weather information and emergency alerts 24 hours a day. It is an important tool for staying safe during severe weather or other emergencies. Learning about NOAA Weather Radio is part of the Radio merit badge because it helps Scouts understand how radio technology can save lives.

How It Works
NWR broadcasts warnings and updates directly from the National Weather Service (NWS). These messages include alerts for severe weather, like tornadoes, hurricanes, or floods, as well as other emergencies, such as chemical spills or AMBER alerts. The broadcasts use a special frequency that requires a NOAA weather radio or a compatible device to receive them.

Emergency Alerts
NOAA weather radios can be set to sound an alarm when a warning is issued for your area. This feature, called SAME (Specific Area Message Encoding), ensures you are alerted only to emergencies affecting your specific location. For example, if a tornado warning is issued for your county, the radio will sound an alert even if you’re asleep or not paying attention.

Why It’s Important
Having an NOAA weather radio ensures you stay informed during power outages or when cell phones and the internet aren’t available. By understanding NOAA Weather Radio as part of the Radio merit badge, Scouts learn how this system uses radio technology to keep people safe in emergencies. This knowledge can help them and their communities be better prepared for unexpected dangers.

How Cellular Telephones Work and Their Role in Emergencies

Cellular telephones use radio waves to send and receive voice, text, and data. They are an important part of modern communication. Learning how cell phones work and their role in emergencies is a key part of the Radio merit badge because it helps Scouts understand how technology keeps people connected.

How Cellular Telephones Work
Cell phones communicate through a network of cell towers. When you make a call or send a text, your phone converts your voice or message into a radio signal. This signal travels to the nearest cell tower and is sent to the network, which routes it to the person you’re contacting. The system uses small geographic areas called “cells,” and as you move, your phone automatically connects to the closest tower.

Benefits in an Emergency
Cell phones are very helpful in emergencies because they:

• Allow you to call for help quickly by dialing 911.
• Provide access to emergency alerts and updates.
• Can share your location with rescuers using GPS.
• Offer ways to communicate through calls, texts, or apps when one method might fail.

Limitations in an Emergency
Despite their benefits, cell phones have limitations in emergencies:

• Cell towers can become overloaded with too many users trying to call at once.
• Power outages can make towers or charging phones difficult.
• Signals may be weak or unavailable in remote areas.

Understanding how cell phones work and their role in emergencies is an important part of the Radio merit badge. While they are a valuable tool, it’s also important to have backup plans, like a weather radio or two-way radios, to stay informed and communicate during emergencies.

Safety Precautions for Working with Radio Gear

When working with radio gear, safety is very important. Learning these precautions is a key part of the Radio merit badge because it helps Scouts understand how to use radio equipment safely and avoid potential dangers. Key areas of focus include grounding, power outlets, and antenna systems.

Grounding
Grounding is the process of connecting electrical equipment to the Earth to prevent dangerous electrical buildup. This is important for:

• Direct Current (DC) Circuits: Proper grounding prevents electrical shocks and protects the equipment from power surges.
• Power Outlets: Using grounded outlets with three-prong plugs ensures that excess electricity has a safe path to the ground instead of causing harm.
• Antenna Systems: Grounding antennas protects against lightning strikes and reduces the risk of damage to the radio gear during storms.

Precautions for Power Outlets
When working with power outlets:

• Avoid overloading outlets with too many devices.
• Always use equipment with proper fuses or circuit breakers.
• Disconnect power before performing any repairs or adjustments.

Antenna Safety
Antenna systems can be dangerous if not handled properly:

• Ensure antennas are mounted securely and away from power lines.
• Never install or adjust antennas during a storm.
• Use insulated tools when working near antennas.

By following these safety precautions, Scouts earning the Radio merit badge can work with radio gear confidently and safely. Understanding grounding and proper handling of power and antennas helps protect both the operator and the equipment. This knowledge is essential for anyone using radio systems in Scouting or other activities.

Exploring a Radio Installation

Visiting a radio installation is a hands-on way to learn about radio communication and complete a requirement for the Radio merit badge. During your visit, you’ll see equipment in action, learn how it is used, and understand the licenses needed to operate and maintain it. The purpose of the station and its role in communication will also be explained.

Types of Equipment
At a radio installation, you might see equipment like transceivers, amplifiers, antennas, and computers.

• Transceivers: Used for both transmitting and receiving radio signals.
• Amplifiers: Boost signal strength to cover longer distances.
• Antennas: Send and receive signals, connecting the station to the airwaves.
• Computers: Often used to log contacts, decode digital signals, or operate automated systems.

Each piece of equipment plays a role in ensuring clear communication across short or long distances.

How the Equipment Is Used
The equipment at the station will depend on its purpose. For example:

• Amateur Radio Stations: Used for hobby communication, emergencies, or contests. Operators may use voice, Morse code, or digital modes to connect with others worldwide.
• Broadcast Stations: Send programs like music, news, or talk shows to large audiences.
• Public Service Communications Centers: Coordinate emergency services like police, fire, and rescue through two-way radios.

Licenses Required
The type of license required depends on the station:

• Amateur Radio Stations: Operators need an amateur radio license from the Federal Communications Commission (FCC). Different levels (Technician, General, or Extra) allow access to various frequencies.
• Broadcast Stations: Professional operators and engineers may need commercial radio operator licenses or certifications.
• Public Service Centers: Licensing requirements vary but often include specialized training for emergency communication systems.

Purpose of the Station
The purpose of the station depends on its type. Amateur radio stations connect people for learning and fun. Broadcast stations focus on reaching large audiences with information and entertainment. Public service communications centers are vital for emergency response, helping first responders stay in touch and save lives.

Visiting a radio installation is a valuable experience for Scouts earning the Radio merit badge. It provides a deeper understanding of radio equipment, operations, and the important roles these stations play in everyday communication and emergencies.

Career Opportunities in Radio

Earning the Radio merit badge introduces Scouts to the fascinating world of radio communication. This badge can inspire Scouts to explore careers in radio and related fields, combining technology, creativity, and public service. Here are some career paths a Scout might consider:

Broadcasting
Working in broadcasting involves creating and sharing content like music, news, or entertainment with large audiences. Careers include:

• Radio Host: On-air personalities who entertain or inform listeners.
• Producer: Oversees programming and schedules.
• Broadcast Engineer: Maintains and operates the technical equipment used in radio stations.

Amateur Radio and Emergency Communications
Amateur radio often leads to careers in emergency services or public safety. Roles include:

• Emergency Communications Specialist: Coordinates communication during disasters.
• Public Safety Dispatcher: Manages radio communication for police, fire, and ambulance services.

Technical and Engineering Careers
For Scouts interested in technology, there are opportunities in designing and maintaining radio systems:

• Radio Frequency (RF) Engineer: Designs and tests radio equipment and systems.
• Antenna Designer: Specializes in creating antennas for radios, satellites, and other technologies.

Space and Satellite Communications
Radio waves are vital in space exploration and satellite technology. Careers include:

• Satellite Communications Engineer: Develops systems to send and receive data from satellites.
• Astronomer: Uses radio telescopes to study stars and planets.

Digital and Data Communication
With the rise of digital technology, radio has expanded into fields like data transmission and wireless communication. Jobs include:

• Wireless Network Engineer: Designs networks for cell phones and Wi-Fi.
• IoT Specialist: Works on devices that use radio waves to connect to the internet.

Exploring these career opportunities helps Scouts earning the Radio merit badge understand how radio impacts many industries. It also shows them how they can turn their interest in radio into a future profession.

Exploring Amateur Radio for the Radio Merit Badge

Amateur radio, also called “ham radio,” is a service regulated by the Federal Communications Commission (FCC). It provides people with a way to communicate for fun, education, and public service. Learning about amateur radio is an important part of earning the Radio merit badge.

Why the FCC Has an Amateur Radio Service
The FCC supports amateur radio to encourage technical learning, promote international goodwill, and provide communication during emergencies. Amateur radio operators, also known as “hams,” can assist during disasters by providing emergency communication when other systems fail.

Activities for Licensed Amateur Radio Operators
Licensed hams can:

• Talk to people worldwide using voice, Morse code, or digital modes.
• Participate in contests to make as many contacts as possible.
• Experiment with building antennas or designing radio equipment.
• Provide emergency communication during disasters.
• Use satellites to communicate or even connect with the International Space Station.

License Classes and Privileges
Amateur radio has three license levels, each offering more privileges:

• Technician Class: Entry-level license. Allows access to local communication and some international bands using voice, digital, and Morse code.
• General Class: Offers broader privileges, including more frequencies for worldwide communication.
• Extra Class: The highest level, with access to all amateur radio frequencies and the most privileges.

Exam Administration
Amateur radio exams are administered by volunteer examiners (VEs) who are licensed hams trained to test and certify new operators.

Five Q Signals and Amateur Radio Terms
Q signals are shorthand used in ham radio to save time:

• QTH: “What is your location?” or “My location is…”
• QRZ: “Who is calling me?”
• QRM: Refers to interference from other stations.
• QRP: Low power operation.
• QSL: Confirmation of contact, often exchanged as a card or digital log.

Making Emergency Calls
To make an emergency call:

• Voice: Clearly state “Mayday, Mayday” and provide your location and nature of the emergency.
• Morse Code: Send “SOS” (… — …). Repeat the message until you receive a response.

Transceivers and Repeaters

• Handheld Transceivers: Small and portable, good for local communication.
• Mobile Transceivers: Installed in vehicles for stronger signals and greater range.
• Base Station Transceivers: Larger and more powerful, designed for home use.
• Repeaters: Stations that amplify and retransmit signals, allowing communication over much greater distances.

Simulated Amateur Radio Contact
Scouts can practice a simulated contact by following these steps:

1. Use your call sign to initiate the conversation.
2. Exchange basic information like your location (QTH) and signal report (RST).
3. Use Q signals, like QSL, to confirm receipt of information.
4. Log the contact by noting the other operator’s call sign, time, and frequency.

By exploring amateur radio through these activities, Scouts completing the Radio merit badge gain hands-on experience in communication, learn about radio technology, and understand the importance of amateur radio in emergencies.

Exploring Commercial Broadcasting for the Radio Merit Badge

Commercial broadcasting is an important part of radio communication. Understanding FCC regulations, creating program schedules, logging broadcast stations, and learning industry terms are key activities for Scouts earning the Radio merit badge. These tasks give Scouts insight into how radio stations operate and how they reach their audiences.

FCC Regulations for Broadcasting
The Federal Communications Commission (FCC) oversees all U.S. radio broadcasts. Key regulations include:

• Power Levels: Stations must stay within approved power limits to avoid interference. High-power stations can cover large areas, while low-power stations (under 100 watts) serve smaller communities or specific purposes.
• Frequencies: Broadcast frequencies are assigned by the FCC to prevent overlap. For example, FM stations use the 88–108 MHz range.
• Low-Power Stations: Often used by schools, churches, or community groups, these stations must meet specific rules, such as not interfering with full-power stations and including educational or public-interest programming.

Preparing a Program Schedule for “KBSA”
Creating a half-hour program schedule requires balancing content to engage listeners. For example:

• 0:00–5:00: News and weather updates.
• 5:00–15:00: Music playlist (3–4 songs).
• 15:00–17:00: Commercial break (ads for local businesses).
• 17:00–25:00: Talk segment (interview or public service announcement).
• 25:00–30:00: Music wrap-up and proper station identification (“This is KBSA, your station for great music and news!”).

Recording this program lets Scouts practice using microphones, mixing audio, and editing for smooth transitions.

Logging Broadcast Stations
Listen to and log 15 broadcast stations. For each, note the station’s call sign, frequency, and format. For five stations, determine their target audience. For example:

• Top 40 Station: Targets teens and young adults with pop music.
• News Station: Aims at adults interested in current events.
• Country Station: Focuses on fans of country music across various age groups.

Broadcasting Terms
Scouts should know at least eight common broadcasting terms:

• Segue: Smooth transition between two songs or segments.
• Cut: Short segment of audio or music.
• Fade: Gradual increase or decrease in audio volume.
• Continuity: Script or plan for keeping a program organized.
• Remote: Broadcast from a location outside the station.
• Emergency Alert System (EAS): Sends emergency messages to the public.
• Dead Air: Unintentional silence during a broadcast.
• PSA (Public Service Announcement): Free message promoting community interests.

Alternative Radio Platforms
Radio isn’t limited to traditional broadcasting. Alternative platforms include:

• Internet Streaming: Online radio stations that can be accessed worldwide.
• Satellite Radio: Subscription-based services offering a wide range of channels without local interference.
• Podcasts: On-demand audio programs that listeners can download or stream.

By exploring FCC regulations, programming, and alternative platforms, Scouts completing the Radio merit badge gain a deep understanding of how radio operates and its role in connecting communities.

Exploring Radio Listening for the Radio Merit Badge

Listening to shortwave and medium-wave radio broadcasts helps Scouts understand how radio signals travel and change depending on time of day and frequency. This activity is a key part of earning the Radio merit badge and provides practical experience with logging stations and analyzing signal differences.

Listening to Shortwave Bands
Shortwave radio allows listeners to hear broadcasts from around the world. Scouts should listen for four one-hour periods, including one during the day and one at night. Log each station’s:

• Frequency: The station’s specific location on the radio spectrum.
• Call Sign or Identifier: The station’s name or code.
• Location: Use a map, globe, or online tool to locate the station.

At night, shortwave signals often travel farther because the ionosphere reflects them more effectively. During the day, higher frequencies tend to work better because of changes in atmospheric conditions.

Listening to Medium-Wave Stations
Medium-wave (AM) stations are great for understanding local and regional radio. Scouts should log stations during two one-hour periods, one during the day and one at night. Note the same details as for shortwave stations and compare logs. At night, distant AM stations are often clearer because the ionosphere reflects their signals, allowing them to travel farther. During the day, these signals are absorbed, limiting their range.

Comparing Day and Night Logs
Scouts will notice differences in signal strength based on time of day. Shortwave and medium-wave signals are often stronger at night due to ionospheric reflection. Frequencies that are loud and clear during the day may become weaker or disappear at night, and vice versa. Logging these changes helps Scouts see how atmospheric conditions affect radio waves.

Using a Smartphone to Listen to Radio
A smartphone can access traditional and international broadcasts through apps or streaming platforms. Many stations stream their content online, making it easy to hear broadcasts from around the world. For example, Scouts can use apps like TuneIn Radio to find international stations and compare their programs to those heard on shortwave or medium wave.

By listening to shortwave and medium-wave radio, comparing logs, and exploring smartphone broadcasts, Scouts earning the Radio merit badge learn how radio waves behave and how people around the world stay connected through radio communication.

Amateur Radio Direction Finding (ARDF) and Fox Hunting

Amateur Radio Direction Finding (ARDF), also known as “fox hunting,” is an activity where participants use radio signals to locate a hidden transmitter, called the “fox.” This hands-on activity is a fun and educational way for Scouts earning the Radio merit badge to learn about direction finding and its importance.

Why Direction Finding Is Important
ARDF is both a recreational activity and a skill with practical uses.

• As an Activity: It combines problem-solving, map reading, and physical fitness. In competitions, participants race to find hidden transmitters in the shortest time possible.
• In Practical Use: Direction finding can help locate emergency beacons, lost hikers, or illegal radio transmissions that interfere with communication systems.

Frequencies and Equipment for ARDF
ARDF typically uses two frequency ranges:

• 2-Meter Band (144–148 MHz): Common for local fox hunts due to compact equipment and clear signals.
• 80-Meter Band (3.5–4 MHz): Offers different challenges with longer wavelengths that behave differently around obstacles.

Equipment needed includes:

• Receiver: A radio device tuned to the fox’s frequency.
• Directional Antenna: Used to detect the strongest signal direction.
• Attenuator: Reduces strong signals to prevent receiver overload when near the fox.

Building a Simple Directional Antenna
Scouts can build a simple directional antenna for the 2-meter band using common materials like PVC pipes, wire, and a coaxial cable. Yagi antennas are popular for their accuracy and ease of construction.

Participating in a Fox Hunt
During a fox hunt, Scouts use their directional antenna and receiver to locate the hidden transmitter. They take signal readings from different locations and mark the strongest directions on a map. By triangulating these signals, they can narrow down the fox’s location.

Mapping the Fox’s Location
Using a map, Scouts draw lines showing the direction of the strongest signal from each listening point. The intersection of these lines indicates the approximate location of the fox. Scouts can compare their map to the actual location of the transmitter to check their accuracy.

ARDF and fox hunting are engaging ways for Scouts to apply the skills learned while earning the Radio merit badge. These activities teach the science behind radio waves, develop navigation skills, and provide fun challenges that connect Scouts with amateur radio enthusiasts.

Communication Program Feature for Scouts BSA Troops

The Communication troop program feature helps Scouts build skills to share ideas and understand others better. It covers verbal and non-verbal communication, body language, and methods for giving and receiving information. Scouts can learn the EDGE method, plan a campfire program, or work on merit badges like the Communication merit badge or the Radio merit badge. These activities teach practical communication skills in fun and engaging ways.

This feature includes games like “Who Am I?” and “Follow My Voice” to make meetings interactive. Scouts can visit a television studio or radio station, which ties in with exploring the Radio merit badge. Advanced activities, like planning a campout to focus on communication, encourage teamwork and leadership. The program is full of ideas to make meetings meaningful while helping Scouts improve communication skills they will use throughout their lives.

Morse Code Interpreter Strip

The Morse Code interpreter strip is a unique award offered by Scouting America. It recognizes Scouts and leaders who demonstrate skill in Morse Code. This involves practicing listening, copying, and sending messages at a minimum speed of five words per minute. Wearing the strip on the uniform shows that the Scout has learned an important form of communication used in amateur radio and emergencies.

This award complements the Radio merit badge by building practical skills in sending and receiving messages. It also connects to the Radio merit badge’s focus on learning different methods of communication, including Morse Code. Earning the interpreter strip is a fun challenge for Scouts who enjoy working with radios, exploring technology, and practicing precision. It’s a great way to combine tradition with useful modern skills.

More Merit Badge Resources

Merit badges let Scouts explore new skills and interests while learning about exciting topics. With over 100 options, there’s something for everyone, from outdoor skills to science, technology, and creative arts. Scouts can earn any merit badge at any time, even if they haven’t advanced in rank. Merit badges like the Radio merit badge teach hands-on skills that can lead to hobbies or even future careers.

The Radio merit badge is part of the Information Technology and Communication category, but there are badges for almost every interest. Whether you want to learn about emergency preparedness, entrepreneurship, or artistic hobbies, there’s a badge for you. Merit badges give Scouts the chance to try new things and work with counselors who are experts in their fields. Talk to your Scoutmaster to learn more about the exciting opportunities available through merit badges.

Learn More about Scouts BSA

Scouts BSA is a program for youth aged 11 to 17 that helps them develop leadership, character, and life skills. It emphasizes adventure, service, and personal growth through outdoor activities like camping and hiking. Scouts also learn teamwork and leadership by working in patrols. Merit badges, including the Radio merit badge, allow Scouts to explore new interests and skills while advancing through the program.

Earning merit badges like the Radio merit badge helps Scouts discover hobbies or potential careers while gaining practical knowledge. Scouts BSA is open to youth from all backgrounds, offering activities and challenges that build confidence and prepare them for the future. With opportunities for leadership, service, and fun, Scouts BSA provides a strong foundation for success in life.

What is the Radio merit badge about?

The Radio merit badge teaches Scouts how radio communication works. Scouts learn about radios, signals, broadcasting, and how to use equipment. It also covers emergency communication and amateur radio.

Do I need my own radio to earn the Radio merit badge?

No, you don’t need your own radio. Your counselor or a local radio club can provide the equipment needed for activities like listening to broadcasts or practicing with amateur radio.

What is amateur radio, and why is it part of the Radio merit badge?

Amateur radio, or “ham radio,” is a hobby where people use radios to communicate for fun, learning, and emergencies. It is part of the Radio merit badge because it shows how radio can connect people and serve communities.

Do I need a license to use amateur radio?

Yes, you need an FCC license to use amateur radio on your own. However, during the Radio merit badge activities, you can operate under the guidance of a licensed operator.

What is a fox hunt, and why is it part of the Radio merit badge?

A fox hunt is a fun activity where Scouts use direction-finding skills to locate a hidden radio transmitter, called the “fox.” It is part of the Radio merit badge because it helps Scouts learn how to track radio signals.

What types of stations will I listen to for the Radio merit badge?

You will listen to shortwave, medium-wave (AM), and possibly FM stations. You will also explore international broadcasts and may hear amateur radio operators.

Why do we learn about FCC regulations for the Radio merit badge?

The FCC sets rules for how radio is used to prevent interference and keep communication organized. Learning these rules helps Scouts understand the importance of using radio responsibly.

How does radio help in emergencies?

Radio is used in emergencies when other communication systems fail. Amateur radio operators and NOAA Weather Radio provide critical information during disasters. Scouts learn how radio can save lives while working on the Radio merit badge.

What careers can the Radio merit badge lead to?

The Radio merit badge introduces Scouts to careers in broadcasting, emergency communications, engineering, and satellite technology. It’s a great starting point for exploring these fields.

Can I earn the Radio merit badge online?

Some parts, like studying FCC rules or logging radio stations, can be done at home. However, hands-on activities like using radio equipment or participating in a fox hunt usually require in-person involvement.

The Radio merit badge introduces Scouts to the exciting world of communication through radio waves. It combines science, technology, and hands-on activities to show how radios work and how they connect people worldwide. Scouts learn about different types of radio communication, including amateur (ham) radio, broadcast radio, and emergency communication systems.

This badge helps Scouts understand the basics of how radio waves carry information. They discover how transmitters, receivers, antennas, and amplifiers work together to send and receive signals. Activities like building a simple antenna, listening to shortwave broadcasts, and participating in a fox hunt make learning fun and interactive.

The Radio merit badge also teaches the real-world importance of radio. Scouts explore FCC regulations, learn how radio is used in emergencies, and even try amateur radio communication. They also get a chance to listen to international broadcasts, log stations, and practice using radio equipment.

Whether you’re interested in technology, public service, or just want to explore a new hobby, the Radio merit badge offers something for everyone. It’s a great way to build skills, have fun, and maybe even discover a future career in communication.
