Electricity Merit Badge

The Electricity merit badge is an important achievement for Scouts BSA. It helps them learn about electricity, how it works, and how to use it safely. This knowledge is handy for everyday life.

One big reason for this badge is safety. Scouts learn about electrical circuits and how to be safe around electricity. This is crucial to avoid accidents and protect themselves and others.

Another benefit of the Electricity merit badge is problem-solving. Scouts get to work with electrical equipment and figure out how things work. This skill can help them in emergencies and also in future jobs or hobbies.

Plus, earning this badge is a way to build character. It teaches Scouts to be patient and careful as they complete the requirements. This can help them grow into responsible and persistent individuals.

In a nutshell, the Electricity merit badge is a practical and educational tool for Scouts. It teaches them about electricity, safety, problem-solving, and character development, all in a simple and straightforward way.

The requirements for this merit badge were updated effective January 1, 2025.

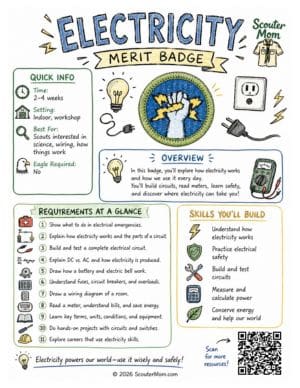

Download the Electricity Merit Badge Requirements

Electricity Merit Badge Pamphlet

Electricity Merit Badge Workbook / Worksheet

Electricity Merit Badge Printable Requirement Check Off Sheet

Checklist for All Merit Badges

Help with Answers for Electricity Merit Badge Requirements

Find specific helps for some of the Electricity merit badge requirements listed below. Some of these resources will just give the answers. Others will provide engaging ways for older Scouts to introduce these concepts to new Scouts.

• Requirement 1: Emergencies
• Requirement 2: Home Safety
• Requirement 3: Electromagnet
• Requirement 4: DC and AC
• Requirement 5: Battery and Bell
• Requirement 6: Fuses and Circuit Breakers
• Requirement 7: Wiring Diagram
• Requirement 8: Energy Use
• Requirement 9: Terms
• Requirement 10: Practical Uses
• Requirement 11: Careers
• More Resources

How to Turn Off Power

One important part of earning the Electricity merit badge is understanding how to safely turn off power to your home or a specific circuit. Knowing this is critical in an emergency, such as if a wire is sparking or an appliance is overheating.

If there’s an emergency with electricity, you may need to turn off power to a circuit or your whole house. Here’s how:

To Turn Off a Circuit:

1. Find the circuit breaker box. This is usually in a basement, garage, or utility room.
2. Open the panel door. Inside, you’ll see rows of switches. Each one controls a specific circuit.
3. Locate the switch for the circuit you need to turn off. It should be labeled (like “Kitchen” or “Living Room”).
4. Flip the switch to the “off” position. This will cut power to that area.

To Turn Off All Power to the House:

1. Look for the main breaker. This is often a larger switch at the top or bottom of the panel.
2. Flip the main breaker to the “off” position. This shuts off power to the entire house.

Always remember, electricity is powerful and can be dangerous. The Electricity merit badge will help you understand how to use it safely and what to do in emergencies. These skills can protect you and others in your home.

Live Wire Rescue

Rescuing someone touching a live wire at home needs to be done with extreme caution to ensure everyone’s safety. Here’s a straightforward guide for the Electricity merit badge:

• Don’t Touch: The first rule is, don’t touch the person or the wire with your bare hands. Electricity can travel through your body and cause harm. Stay at least 20 feet away from the wire if possible.
• Call for Help: Immediately call 911 or your local emergency number. Tell them there’s a person in contact with a live wire. Provide your address and any other information they ask for.
• Cut the Power: If it’s safe to do so, cut off the electrical power. Locate the circuit breaker box or fuse box in your home and turn off the circuit that supplies power to the area where the person is in contact with the wire. Use a non-conductive object, like a wooden stick, to flip the switch or pull the fuse.
• Use a Non-Conductive Aid: If you can’t reach the circuit breaker safely, try to use a non-conductive object, like a dry wooden broom or PVC pipe, to gently push or pull the person away from the wire. Do not touch them directly.
• Wait for Professionals: Even if you manage to move the person away from the wire, they might still be at risk of electrical shock. Keep a safe distance until paramedics or firefighters arrive. They are trained to handle such situations safely.

The Electricity merit badge teaches that the key is to prioritize safety. Don’t take unnecessary risks, and leave the actual rescue to professionals whenever possible.

Staying Safe Around Downed Power Lines

The Electricity merit badge helps Scouts learn about electrical safety, including what to do if a utility wire falls on a car during an accident. This situation can be very dangerous because the wire could still be carrying electricity. Understanding how to safely get out of the car—or stay in it—is an important skill to know.

If a power line is on your car, follow these steps to stay safe:

• Stay Inside if Possible
  • The safest place is usually inside the car. The car’s metal body can act as a shield, keeping electricity away from you.
  • Call 911 and explain the situation so emergency workers can help safely.
• If You Must Exit the Car
  • Only leave the car if there is immediate danger, like if the car is on fire.
  • Open the door carefully and don’t touch the car and the ground at the same time.
  • Jump out with both feet together, landing on the ground without stumbling.
• Move Away Safely
  • Keep your feet close together and shuffle away, taking small steps without lifting your feet. This prevents electricity from traveling through your body.
  • Stay at least 35 feet away from the car or power lines.

The Electricity merit badge teaches Scouts how to handle situations like this. It helps you recognize the dangers of electricity and take steps to keep yourself and others safe. Always remember, electricity demands respect, especially in emergencies.

Electrical Shock

Providing first aid to an unconscious person from electrical shock requires caution and immediate action. Here’s a straightforward guide for the Electricity merit badge:

• Ensure Safety: Before approaching the person, make sure the electrical source is turned off or the person is no longer in contact with it. Your safety is a priority.
• Call for Help: Dial 911 or your local emergency number immediately to summon professional medical assistance. Report that you’re dealing with an unconscious person from electrical shock.
• Check for Breathing and Pulse: Approach the person cautiously, avoiding any contact with the electrical source. Check if they are breathing and have a pulse. If they aren’t breathing or have no pulse, you may need to perform CPR. If you’re trained in CPR, begin chest compressions and rescue breaths. If not, follow the dispatcher’s instructions until help arrives.
• Keep Them Still: If the person has a pulse and is breathing, keep them still and in a comfortable position. Do not move them unless it’s necessary for their safety.
• Monitor Vital Signs: Keep an eye on the person’s breathing and pulse while waiting for professional help. Be prepared to perform CPR if their condition worsens.
• Do Not Offer Food or Water: Avoid giving the person food or water, as they may have internal injuries.
• Offer Comfort: Talk to the person calmly to reassure them that help is on the way. Stay with them until medical professionals arrive.

Remember, electrical shock can cause hidden injuries, so it’s crucial to seek immediate medical attention even if the person appears stable. Your primary role is to ensure their safety, provide basic care, and wait for professional help to take over.

Electrical Burns

Treating an electrical burn should be done with care. Here’s a straightforward guide for the Electricity merit badge :

• Ensure Safety: Before helping the person, make sure the electrical source is turned off or the person is no longer in contact with it. Your safety is important.
• Call for Help: Dial 911 or your local emergency number to get professional medical assistance. Electrical burns can be serious, and it’s crucial to have them evaluated by a healthcare provider.
• Assess the Burn: Examine the burn and determine its severity. Electrical burns can vary from mild to severe. If the burn is severe (deep, covers a large area, or involves the head, hands, feet, genitals, or major joints), do not attempt to treat it beyond keeping it clean and covered.
• Cool the Burn: If the burn is minor and the person is not allergic to cold, gently cool the burn with cool (not cold) running water for about 10-20 minutes. Avoid using ice or very cold water as it can damage the tissue further.
• Protect the Burn: Cover the burn with a sterile, non-stick dressing or a clean, dry cloth to prevent infection. Do not use adhesive bandages directly on the burn.
• Elevate if Possible: If the burn is on an extremity (arm or leg) and the person can tolerate it, elevate the injured area slightly to reduce swelling.
• Pain Relief: Over-the-counter pain relievers, if available and not contraindicated, can help manage pain. Follow dosage instructions.
• Do Not Pop Blisters: If blisters form, do not pop them, as this can increase the risk of infection.
• Monitor for Shock: Keep a close eye on the person for signs of shock, such as rapid breathing, confusion, or pale and clammy skin. If you notice these signs, lay the person down, keep them warm, and elevate their legs if possible while waiting for professional help.

Remember, electrical burns can be more serious than they appear, and professional medical evaluation is crucial. Your role is to provide initial care, keep the burn clean and covered, and call for professional help.

Electrical Fire

In the event of an electrical fire, it’s important to act quickly and safely. Here’s a straightforward guide on what to do for the Electricity merit badge :

• Safety First: Your safety is the top priority. If the fire is small and can be easily managed, and you have a suitable fire extinguisher, you can try to use it to put out the fire. However, if the fire is spreading rapidly or you’re unsure about using a fire extinguisher, evacuate immediately.
• Call 911: Dial 911 or your local emergency number to report the fire. Even if you think you’ve extinguished it, it’s essential to have professionals on the way in case the fire reignites or there’s hidden damage.
• Evacuate: If the fire is not easily controllable, evacuate the building immediately. Make sure everyone else in the building is aware of the fire and is also evacuating. Do not use elevators during a fire; use the stairs.
• Close Doors: As you leave, close any doors behind you. This can help contain the fire and slow its spread.
• Do Not Use Water: Do not attempt to extinguish an electrical fire with water. Water can conduct electricity and make the situation worse. Use a fire extinguisher rated for electrical fires if available.
• Turn Off Power: If it’s safe to do so and you can reach the circuit breaker or fuse box without risking injury, turn off the power supply to the affected area. This can help prevent the fire from getting worse.
• Stay Low: If there’s smoke, stay close to the ground as smoke rises, and the air near the floor is less smoky and toxic.
• Don’t Re-enter: Once you’ve evacuated, do not re-enter the building until the fire department gives the all-clear.

Remember, electrical fires can be particularly hazardous due to the risk of electric shock. Prioritize safety, call for professional help, and evacuate if you’re not confident in your ability to extinguish the fire safely.

Staying Safe During an Electrical Storm

The Electricity merit badge teaches Scouts how to stay safe around electricity, including during natural events like electrical storms. Being caught in the open during a storm can be dangerous, but knowing what to do can help protect you.

• Avoid Tall Objects: Stay away from tall trees, poles, or anything that can attract lightning. Move to a low-lying area like a ditch or valley.
• Get Away from Water: Water conducts electricity, so avoid lakes, ponds, or puddles. Move to dry ground if possible.
• Stay Low and Minimize Contact: If you cannot find shelter, crouch down on the balls of your feet with your arms wrapped around your knees. Avoid lying flat on the ground.
• Avoid Metal Objects: Stay away from anything made of metal, like fences, tools, or bicycles. Metal can conduct electricity from a lightning strike.
• Wait for the Storm to Pass: Remain in a safe position until you haven’t seen lightning or heard thunder for at least 30 minutes.

The Electricity merit badge teaches Scouts how to respect the power of electricity and take steps to stay safe in dangerous situations. Knowing these tips for electrical storms can help protect you in an emergency.

Electrical Home Safety Inspection Checklist

See a typical electrical home safety inspection checklist for Electricity merit badge requirement 2 below.
Download a printable copy of the Electrical Home Safety Inspection Checklist

Electrical Panel:

• Check if the electrical panel is easily accessible and not blocked by any objects.
• Ensure that circuit breakers or fuses are properly labeled for each circuit.

Outlets and Switches:

• Inspect all outlets and switches for signs of damage, such as cracks or exposed wires.
• Check for loose-fitting plugs in outlets.
• Ensure that all outlets and switches have cover plates in good condition.

Cords and Plugs:

• Examine extension cords and power strips for frayed or damaged wires.
• Make sure cords are not pinched under furniture or rugs.
• Avoid overloading outlets or power strips with too many devices.
• Remove cords from areas where people walk.
• Ensure that cords are not fixed in place using fasteners such as staples or nails.
• Check that the ground pin has not been bypassed or removed on any plugs.

Appliances and Equipment:

• Check appliances and electrical equipment for damaged cords or plugs.
• Ensure that appliances have the appropriate safety certifications (e.g., UL, CE).
• Verify that all appliances are in good working condition.

Lighting:

• Inspect light fixtures for exposed wires or loose connections.
• Replace burnt-out bulbs promptly.
• Ensure that the wattage of bulbs matches the fixture’s recommended wattage.

Ground Fault Circuit Interrupters (GFCIs):

• Test GFCI outlets and ensure they are working correctly.
• GFCIs should be installed in areas where water is present, such as kitchens, bathrooms, and outdoor outlets.

Smoke Detectors:

• Check smoke detectors for functionality by pressing the test button.
• Replace batteries in battery-operated smoke detectors at least once a year.

Carbon Monoxide Detectors:

• Test carbon monoxide detectors according to the manufacturer’s instructions.
• Replace batteries as needed.

Electrical Cables:

• Inspect electrical cables entering the home for any damage.
• Ensure cables are protected from physical harm, like being pinched or exposed to the elements.

Childproofing:

• If there are young children in the home, ensure that outlets are childproofed with safety covers.

Emergency Equipment:

• Make sure you have a fire extinguisher in the kitchen and know how to use it.
• Have a flashlight and extra batteries readily available in case of power outages.

Remember, safety is the primary concern when inspecting your home’s electrical system. If you discover any issues or are unsure about any aspect of the Electricity merit badge inspection, seek professional assistance to address and resolve the problems.

Making a simple electromagnet for the Electricity merit badge is not difficult. Here’s how:

Materials You Need:

• A cardboard tube (like from a roll of paper towels)
• Insulated (plastic-coated) wire
• A 4.5-volt or 6-volt battery
• A switch made from a paperclip and two thumbtacks attached to a block
• A small compass

Steps to Make the Electromagnet:

1. Wrap the Wire: Take the insulated wire and wrap it around the cardboard tube.
2. Connect the Battery: Attach one end of the wire to the positive (+) side of the battery and the other end to one side of the switch. Then, connect a wire from the other side of the switch to the negative (-) side of the battery.
3. Place the Compass: Slide the small compass into the middle of the cardboard tube. Make sure it can move freely.
4. Use the Paperclip as a Switch: Position a paperclip close to the thumbtack to make a simple switch. You can swivel the paperclip against and away from the thumbtack to open and close the electric circuit.
5. Observe the Compass: Watch what happens to the compass needle as you open and close the circuit. When you close the circuit (by touching the paperclip to the thumbtack), the electric current flows through the wire, creating a magnetic field. This makes the compass needle move. When you break the circuit (move the paperclip away from the thumbtack), the magnetic field disappears, and the compass needle returns to pointing north.

Remember, be careful when working with batteries and wires, and don’t leave the battery connected for too long, as it can get hot. Have fun experimenting with your electromagnet for the Electricity merit badge!

Understanding Direct Current and Alternating Current

The Electricity merit badge helps Scouts learn how electricity works, including the two main types: direct current (DC) and alternating current (AC). These are different ways that electric power moves through a circuit. Each type has advantages, disadvantages, and common uses.

Direct Current (DC):
In DC, electricity flows in one direction, like water through a pipe. This makes it steady and reliable.

• Advantages: DC is great for powering small devices, like electronics, because it provides constant voltage.
• Disadvantages: It is not efficient for sending electricity over long distances because it loses power as it travels.
• Example: Batteries, like those in flashlights or smartphones, provide DC power.

Alternating Current (AC):
In AC, electricity flows back and forth, changing direction many times per second. This is the type of electricity used in most homes and buildings.

• Advantages: AC is efficient for sending electricity over long distances, which is why it’s used in power lines.
• Disadvantages: The changing direction can make it less ideal for delicate electronics without conversion to DC.
• Example: Wall outlets in your home provide AC power to lights, appliances, and other devices.

The Electricity merit badge teaches Scouts about DC and AC so they can understand how electricity powers the world around them. This knowledge helps Scouts see the strengths of each type and how they are used in everyday life.

How Electricity is Produced

The Electricity merit badge helps Scouts learn about how electricity is made and used. There are many ways to produce electricity, and each method has its own benefits. Understanding these methods can help Scouts see how electricity powers our homes, schools, and communities.

Fossil Fuels: Coal, natural gas, and oil are burned to create heat. This heat turns water into steam, which spins turbines to generate electricity. Fossil fuels are widely used but can cause pollution.

Nuclear Power: Nuclear reactions release heat, which turns water into steam to spin turbines. Nuclear energy produces large amounts of electricity with no air pollution, but it creates radioactive waste that must be carefully managed.

Hydropower: Moving water, like from rivers or dams, spins turbines to produce electricity. This is a clean and renewable energy source, but it can affect wildlife and ecosystems.

Wind Power: Wind spins large turbines to create electricity. Wind power is clean and renewable, but it depends on having steady winds.

Solar Power: Solar panels turn sunlight into electricity using special materials. This is another clean, renewable source, but it doesn’t work as well when it’s cloudy or at night.

Geothermal Energy: Heat from deep inside the earth is used to create steam that powers turbines. This is a reliable and renewable source of energy, but it’s not available everywhere.

The Electricity merit badge shows Scouts how these methods work and the impact they have on our world. Learning about electricity production helps Scouts understand how energy choices affect the environment and the way we live.

Battery and Bell Drawing

This diagram illustrates the workings of an electric vibrating bell for the Electricity merit badge. Here’s a straightforward explanation:

The diagram presents an electric vibrating bell setup for the Electricity merit badge . To understand its functionality, let’s follow the path of the electric current:

1. Pushing the button allows current to flow from terminal A to the electromagnet, labeled F.
2. The current then travels to a moving contact, C, and proceeds to contact post D, finally exiting through terminal E.

Now, how does this current make the bell ring?

1. As you press the button, electromagnet F attracts an iron armature, labeled B.
2. This armature has two attachments: the moving contact C and a hammer, H.
3. The hammer strikes a gong or bell, producing the ringing sound.
4. As the armature is drawn towards the magnet, the contact C is pulled away from post D, breaking the circuit and cutting off the current.
5. When the current stops, the electromagnet loses its magnetic force. A return spring, G, then pulls the armature and contact C back towards post D.
6. Once contact C reestablishes connection with post D, the current flows again, and the cycle repeats. This rapid repetition creates the continuous ringing or vibrating sound.

Understanding and Preventing Circuit Overloading

The Electricity merit badge helps Scouts learn about electrical safety, including how to prevent overloading circuits. Overloading happens when too much electricity flows through a circuit, which can cause wires to overheat and lead to fires.

What is Overloading?
A circuit becomes overloaded when too many devices are plugged into it, drawing more electricity than it is designed to handle. It’s like trying to carry too many heavy bags at once; if you add too much, you might drop everything.  For example, if you plug a space heater, a toaster, and a microwave into the same outlet, the circuit might not be able to handle the load.

Preventing Overloading at Home:
To make sure circuits at home are not overloaded, you can:

• Avoid plugging too many devices into one outlet or power strip.
• Use appliances that don’t draw too much power on the same circuit.
• Check your circuit breaker panel to understand which outlets and lights are on the same circuit.
• Replace worn or damaged cords and outlets to reduce risks.

The Electricity merit badge teaches Scouts how to identify these issues and make safe choices with electrical devices. By taking these precautions, you can protect your home and your family from the dangers of overloaded circuits.

How to Check for an Overloaded Circuit

The Electricity merit badge helps Scouts understand how circuits work and how to prevent problems like overloading. One way to check if a branch circuit is overloaded is by calculating the current draw. This means figuring out how much electricity all the devices on the circuit are using and comparing it to the circuit’s capacity.

Using the Power Equation:
You can calculate the current draw using the power equation:

Current (I) = Power (P) ÷ Voltage (V)

For example:

• If you have a device that uses 600 watts and your home’s voltage is 120 volts, the current draw is:
  600 ÷ 120 = 5 amps

Add up the current draw for all the devices on the same circuit. Most home circuits are rated for 15 or 20 amps. If the total current is close to or higher than this limit, the circuit may be overloaded.

Checking Equipment Labels:
Many devices have labels that show how much power (in watts) they use. Write down the wattage of each device plugged into the circuit and use the formula to find the total current.

An overloaded circuit can cause breakers to trip or wires to overheat. The Electricity merit badge teaches Scouts how to calculate and check these loads to keep circuits safe. Knowing how to check for overloads helps prevent electrical hazards in the home.

Why Fuses Blow and Circuit Breakers Trip

The Electricity merit badge teaches Scouts about electrical safety, including how fuses and circuit breakers protect circuits. Both are safety devices that stop the flow of electricity when there’s a problem, like an overload or a short circuit.

Why a Fuse Blows:
A fuse is a small device with a thin metal wire inside. When too much electricity flows through the circuit, the wire heats up and melts. This breaks the circuit and stops the flow of electricity. Fuses need to be replaced after they blow.

Why a Circuit Breaker Trips:
A circuit breaker is a switch that automatically turns off when it detects too much electricity. It works like a fuse but doesn’t need to be replaced. You can reset it by flipping the breaker back to the “on” position once the issue is fixed.

What Causes These to Happen:

• Overloading: Too many devices on one circuit draw more power than the circuit can handle.
• Short Circuits: Wires touching where they shouldn’t can cause electricity to flow the wrong way, creating a dangerous situation.
• Faulty Equipment: Broken or damaged devices can draw too much power or create a short.

The Electricity merit badge teaches Scouts why these safety features are essential. By understanding how they work, you can prevent electrical problems and know how to respond if a fuse blows or a breaker trips.

Finding and Fixing a Blown Fuse or Tripped Circuit Breaker

The Electricity merit badge helps Scouts learn practical skills for handling electrical problems at home, like finding and fixing a blown fuse or tripped circuit breaker. These issues happen when a circuit is overloaded or there’s a short circuit. Knowing what to do keeps you safe and restores power.

How to Find a Blown Fuse:

• Locate the fuse box, often in a basement, garage, or utility room.
• Look at the fuses to see if any are blackened or the metal strip inside is melted. This means the fuse is blown.
• Replace the blown fuse with a new one of the same size and rating. Using the wrong fuse can be dangerous.

How to Find a Tripped Circuit Breaker:

• Go to the circuit breaker panel.
• Look for a breaker that is in the “off” position or halfway between “on” and “off.” Some breakers may also have a red or orange marker showing they’ve tripped.

How to Safely Reset a Circuit Breaker:

• Turn off or unplug devices on the circuit to prevent overloading it again.
• Flip the breaker all the way to the “off” position first, then back to “on.” This resets the breaker.
• If the breaker trips again immediately, there may be a serious problem. Do not reset it again—call a qualified electrician.

The Electricity merit badge teaches Scouts the importance of handling electrical systems with care. Learning how to safely identify and fix these issues is a useful skill for any Scout.

Tips for Drawing a Wiring Diagram for the Electricity Merit Badge

• Pick a Room: Choose a room in your home to create the diagram for. It’s best to start with a smaller room like a bedroom or living room.
• Draw the Walls: Start by drawing the outline of the room, including walls, doors, and windows. Make it simple; you don’t need to be an artist.
• Label the Outlets and Switches: Mark where all the electrical outlets (where you plug things in) and light switches are located on your drawing. Use clear labels like “Outlet 1” and “Switch A.”
• Show the Lights: Draw symbols or simple shapes to represent the lights in the room. Label them clearly as “Light 1,” “Light 2,” and so on.
• Draw Lines: Use lines to connect the outlets, switches, and lights to show how they’re connected. Use different line styles or colors to indicate which circuit they are on.
• Label the Fuses or Circuit Breakers: For each circuit, write down which fuse or circuit breaker in your electrical panel protects it. This is usually marked on the panel itself.
• Keep It Neat: Make sure your diagram is easy to read. Use a ruler to draw straight lines and keep your labels neat and legible.
• Double-Check: Review your diagram to ensure you haven’t missed anything. Make sure every outlet, switch, and light is accounted for.

Remember, the goal is to create a clear and accurate diagram of the electrical wiring in your chosen room. Keep it simple and organized, and you’ll successfully complete this Electricity merit badge requirement.

Reading an Electric Meter and Calculating Power Costs

The Electricity merit badge teaches Scouts how to understand electricity use and calculate its cost. Reading your home’s electric meter and determining power usage can help you learn how much energy your household consumes and how to manage it better.

How to Read an Electric Meter:

• Look at the numbers on the meter. If it’s digital, write down the exact number shown. If it’s an analog meter with dials, record the numbers each pointer is on or just passed.
• Find the previous reading on your last electric bill. Subtract this number from the current reading to calculate how many kilowatt-hours (kWh) you have used.

Calculating the Cost of Power:

• Look at your electric bill to find the rate per kilowatt-hour. For example, it might be $0.15 per kWh.
• Multiply the total kWh used by the rate. For example, if you used 500 kWh:
  500 kWh × $0.15 = $75.00

Learning to read an electric meter is a great way to see how your energy use adds up. The Electricity merit badge helps Scouts understand the impact of their energy choices and how to save electricity at home. These skills can help you be more mindful about power use and its cost.

Understanding Taxes and Fees on Your Electric Bill

The Electricity merit badge teaches Scouts how to read and understand an electric bill, including the extra charges that appear as taxes or fees. These charges are not for the electricity you use but for other services or requirements.

Common Charges on an Electric Bill:

• Utility Taxes: Many states or local governments add taxes to electric bills. These help fund public services.
• Delivery Fees: This fee covers the cost of delivering electricity to your home through power lines and equipment.
• Service Charges: These are fixed costs for maintaining the electrical grid and ensuring reliable service, even if you don’t use much electricity.
• Environmental Fees: Some areas charge extra to support renewable energy programs or reduce environmental impacts.
• Regulatory Fees: These cover costs required by state or federal agencies to oversee utility companies.

Understanding these fees helps Scouts learn that electric bills are more than just charges for power use. The Electricity merit badge shows how electricity systems work and how everyone contributes to keeping the system reliable and efficient. Knowing this can help you better understand your household expenses.

Ways to Conserve Energy for the Electricity merit badge

• Turn Off Lights: Always turn off lights in rooms that are not in use.
• Use Energy-Efficient Bulbs: Replace old bulbs with energy-saving LED or CFL bulbs.
• Unplug Devices: Unplug chargers, electronics, and appliances when they’re not in use to avoid “phantom” energy use.
• Seal Leaks: Seal gaps around doors and windows to prevent drafts that make your heating or cooling system work harder.
• Set Thermostat Wisely: Adjust your thermostat to use less heating or cooling when you’re not at home or during the night.
• Use Ceiling Fans: In warmer months, use ceiling fans to help cool rooms instead of lowering the thermostat.
• Upgrade Appliances: Choose energy-efficient appliances when it’s time to replace old ones.
• Wash Clothes Smartly: Use cold water for laundry, and line dry when possible.
• Limit Hot Water Use: Take shorter showers and use a low-flow showerhead to reduce hot water consumption.
• Plant Trees: Planting shade trees around your home can reduce cooling costs in the summer.
• Maintain HVAC Systems: Regularly service your heating and cooling systems to keep them running efficiently.
• Cook Efficiently: Use lids on pots, match the pot size to the burner, and cook with the lid on to retain heat.
• Use Natural Light: Open curtains during the day to use natural light instead of artificial lighting.
• Install a Programmable Thermostat: A programmable thermostat can automatically adjust the temperature when you’re not home.
• Insulate Your Home: Proper insulation can make your home more energy-efficient.
• Educate Your Family: Teach everyone in your family about the importance of conserving energy, and involve them in energy-saving efforts.

By following these tips, your family can reduce energy consumption, lower utility bills, and contribute to a more sustainable environment. This Electricity merit badge requirement helps you understand how to be responsible.

Understanding Basic Electrical Terms

The Electricity merit badge helps Scouts understand the basic terms used in electricity. These words describe how electricity works and are essential for learning about circuits, power, and energy use.

• Current: This is the flow of electricity through a circuit, like water flowing through a pipe. It is measured in amperes (amps).
• Energy: Energy is the total amount of work that electricity can do. It’s what powers your devices and is measured in kilowatt-hours (kWh) on your electric bill.
• Power: Power is the rate at which energy is used or produced. It’s measured in watts (W). For example, a 100-watt light bulb uses power at a rate of 100 watts.
• Resistance: Resistance slows down the flow of electricity in a circuit. It is measured in ohms (Ω). Materials like rubber have high resistance, while metals have low resistance.
• Voltage: Voltage is the force that pushes electricity through a circuit. It’s like the pressure that pushes water through a hose. Voltage is measured in volts (V).

The Electricity merit badge teaches Scouts how to use these terms to understand how electricity works and how to measure it. Knowing these basics helps you explore more advanced concepts and complete your badge requirements with confidence.

Understanding Units of Measure in Electricity

The Electricity merit badge teaches Scouts about the units used to measure different parts of electricity. These units help explain how electricity works in circuits and how energy is used in homes.

• Ampere (amps): Amps measure the flow of electric current. It shows how much electricity is moving through a circuit at one time. For example, a large appliance like a refrigerator uses more amps than a small device like a phone charger.
• Ohms (Ω): Ohms measure resistance. Resistance is how much a material or circuit slows down the flow of electricity. Higher resistance means electricity flows less easily.
• Volts (V): Volts measure voltage, which is the pressure that pushes electricity through a circuit. Most homes use 120 volts for small appliances and 240 volts for larger ones like ovens.
• Watts (W): Watts measure power, or how much electricity is being used at one time. For example, a 60-watt light bulb uses power at a rate of 60 watts when turned on.
• Watt-Hours (Wh): Watt-hours measure energy, or how much electricity is used over time. If you leave a 60-watt light bulb on for one hour, it uses 60 watt-hours of energy.

The Electricity merit badge helps Scouts understand these units and how they relate to each other. Knowing these measurements is important for completing requirements and understanding how electricity is used in daily life.

Understanding Electrical Conditions

The Electricity merit badge helps Scouts learn about different electrical conditions. These terms describe the way electricity behaves in circuits and systems, which is essential for understanding how to work with it safely and effectively.

• Generating Source: This is where electricity is created. A common example is a power plant, where turbines generate electricity, or a solar panel, which converts sunlight into electrical energy.
• Ground: The ground is a safety feature that provides a path for electricity to flow safely into the earth. It helps protect people and equipment from electrical shocks or damage. For example, most outlets have a ground connection to prevent accidents.
• Open Circuit: An open circuit happens when there’s a break or gap in the circuit, stopping the flow of electricity. For example, when you turn off a light switch, it creates an open circuit and the light goes out.
• Overvoltage: Overvoltage occurs when too much voltage flows into a circuit. This can damage equipment or cause a fire. Lightning strikes can cause overvoltage, which is why surge protectors are used.
• Potential Difference: This is the difference in voltage between two points in a circuit. It’s what causes electricity to flow. For example, a battery has a potential difference between its positive and negative terminals.
• Short Circuit: A short circuit happens when electricity takes an unintended shortcut, bypassing the normal path. This can happen when wires touch or insulation is damaged, and it often causes sparks or tripped breakers.

The Electricity merit badge teaches Scouts to recognize these conditions and understand how they impact electrical systems. Knowing these terms helps Scouts complete their requirements and stay safe while working with electricity.

Understanding Electrical Equipment and Their Uses

The Electricity merit badge helps Scouts learn about important electrical equipment and how it works. These devices and systems play key roles in generating, transmitting, and using electricity safely and efficiently.

• Circuit: A circuit is the path electricity follows. It connects a power source to devices, like lights or appliances, allowing electricity to flow.
• Conductor: A conductor is a material, like copper or aluminum, that allows electricity to flow easily. Wires are made of conductors to carry electricity.
• Ground Fault Circuit Interrupter (GFCI): GFCIs are safety devices that shut off electricity if a ground fault is detected, such as when water gets into an outlet. They’re commonly found in bathrooms and kitchens.
• Insulator: Insulators, like rubber or plastic, do not allow electricity to flow. They are used to cover wires and keep electricity from escaping or causing harm.
• Inverter: An inverter changes direct current (DC) into alternating current (AC). It’s often used in solar power systems to make electricity compatible with home appliances.
• Rectifier: A rectifier converts AC into DC. It’s used in devices like phone chargers to provide the right type of electricity for batteries.
• Rheostat: A rheostat is a device that adjusts the flow of electricity to control things like light brightness or motor speed.
• Substation: A substation is part of the power grid where voltage is adjusted. It can either increase voltage for long-distance transmission or lower it for safe use in homes and businesses.
• Surge Protection: Surge protectors guard against sudden spikes in voltage, like those caused by lightning, to protect devices from damage.
• Solar Panel: Solar panels capture sunlight and convert it into electricity. They are a renewable energy source often used to power homes or devices.
• Transformer: A transformer changes the voltage of electricity, either increasing it for transmission or decreasing it for use in buildings.
• Transmission and Distribution Systems: These systems carry electricity from power plants to homes and businesses. Transmission lines carry high-voltage electricity over long distances, while distribution lines deliver lower voltage electricity locally.
• Wind Turbine: A wind turbine uses wind to spin blades connected to a generator, producing electricity. It’s a renewable energy source.

The Electricity merit badge teaches Scouts how this equipment works and why it’s important in generating and using electricity safely and efficiently. Understanding these tools and systems gives Scouts valuable knowledge about the electrical world around them.

Building a Simple Circuit with a Buzzer, Bell, or Light

The Electricity merit badge teaches Scouts how to create and understand basic circuits. One simple project is connecting a buzzer, bell, or light to a battery with a key or switch in the line. This is a great way to see how electricity flows and how switches control a circuit.

What You’ll Need:

• A battery (AA, 9V, or similar)
• A buzzer, bell, or light bulb with the appropriate voltage rating
• A switch or key
• Insulated wires with exposed ends
• A small breadboard or tape (optional, for holding components in place)

Steps to Build the Circuit:

1. Connect the Battery: Attach one wire to the positive terminal of the battery.
2. Attach the Buzzer, Bell, or Light: Connect the other end of the wire to one terminal of the buzzer, bell, or light.
3. Insert the Switch: Connect another wire from the second terminal of the buzzer, bell, or light to one terminal of the switch.
4. Complete the Circuit: Connect a final wire from the other terminal of the switch to the negative terminal of the battery.

When the switch is closed (turned on), electricity flows from the battery, through the circuit, and powers the buzzer, bell, or light. Opening the switch breaks the circuit, stopping the flow of electricity.

This activity shows Scouts how circuits work and how switches control the flow of electricity. It’s a hands-on way to learn one of the key concepts for the Electricity merit badge and see how electrical systems operate in real life.

Building and Running a Simple Electric Motor

The Electricity merit badge teaches Scouts how electricity is used to create motion. Making a simple electric motor is a great way to see this in action. You can build your motor from scratch or use a kit, but check with your counselor first if you plan to use a kit.

How an Electric Motor Works:
An electric motor uses electricity to create a magnetic field. This magnetic field interacts with permanent magnets to produce motion. The process demonstrates how electrical energy can be turned into mechanical energy.

Building a Simple Electric Motor:
You will need basic materials like wire, a battery, magnets, and a coil. Many kits include these parts and step-by-step instructions.

1. Create a Coil: Wind the wire into a loop (called a coil). This will carry electricity and create a magnetic field.
2. Attach the Coil: Place the coil so it can spin freely between two permanent magnets.
3. Connect the Battery: Use wires to connect the coil to a battery, allowing electricity to flow through the coil.
4. Watch it Move: When the circuit is complete, electricity flows through the coil, creating a magnetic field that interacts with the magnets. This makes the coil spin.

Building a motor helps Scouts understand the relationship between electricity and magnetism. The Electricity merit badge includes learning about motors because they are a key part of many machines and devices we use daily. This activity shows how electricity can do work and make things move.

Building and Testing a Simple Rheostat

The Electricity merit badge helps Scouts explore how to control the flow of electricity in a circuit. A rheostat is a simple device that adjusts the resistance in a circuit, allowing you to control the brightness of a light or the speed of a motor. Building one shows how resistance works to regulate current.

What You’ll Need:

• A length of resistive wire (like nichrome wire)
• A battery
• A small light bulb or motor
• Insulated wires with clips or connectors
• A sliding contact (such as a metal washer or paperclip)

Steps to Build the Rheostat:

1. Create the Resistive Path: Stretch the resistive wire in a straight line or coil it securely around a non-conductive base, like a piece of cardboard.
2. Connect the Circuit: Attach one end of the resistive wire to the positive terminal of the battery and the other end to the light bulb or motor.
3. Add the Sliding Contact: Place the sliding contact on the resistive wire. This will allow you to change the length of the wire in the circuit.
4. Complete the Circuit: Connect the other terminal of the light bulb or motor to the negative terminal of the battery.

Move the sliding contact along the resistive wire. As you change the length of wire in the circuit, the resistance increases or decreases. This will make the light dimmer or brighter, or the motor spin faster or slower.

Building a rheostat teaches Scouts how resistance affects electrical current. The Electricity merit badge includes understanding resistance because it’s used in many devices to control electricity. By building and testing a rheostat, Scouts see firsthand how resistance can regulate power in a circuit.

Building and Testing a Single-Pole, Double-Throw Switch

The Electricity merit badge helps Scouts learn about switches and how they control the flow of electricity. A single-pole, double-throw (SPDT) switch directs electricity from one input to one of two outputs. It is used in devices like three-way light switches or to switch between two circuits. Building an SPDT switch demonstrates how switches work in electrical systems.

What You’ll Need:

• A non-conductive base (such as cardboard or wood)
• Three metal contacts (like small screws or tacks)
• A movable lever (like a paperclip or metal strip)
• A battery
• Two light bulbs or other small loads
• Insulated wires

Steps to Build the SPDT Switch:

1. Attach the Contacts: Secure three metal contacts to the base in a triangle or straight line. These will serve as the connection points for the switch.
2. Create the Lever: Attach the movable lever to the middle contact so it can pivot to touch either of the outer contacts. This allows the circuit to switch between two outputs.
3. Connect the Circuit:
   • Connect the battery’s positive terminal to the middle contact (common terminal).
   • Attach each outer contact to one of the light bulbs.
   • Connect the other terminals of the light bulbs to the battery’s negative terminal.

Move the lever between the two outer contacts. Each time the lever touches one contact, the corresponding light bulb should turn on. This shows the switch directing electricity to one of the two circuits.

Building an SPDT switch helps Scouts understand how electrical circuits can be controlled and redirected. The Electricity merit badge includes activities like this to teach practical skills and explain how switches are used in real-world applications. Understanding switches helps Scouts see how electricity powers devices in homes, vehicles, and other systems.

How 3-Way Switch Wiring Works in a Lighting Circuit

The Electricity merit badge teaches Scouts about electrical systems, including how 3-way switches are wired. A 3-way switch allows you to control a single light from two different locations, such as at the top and bottom of a staircase. Understanding how this works helps Scouts learn about practical applications of electricity.

How a 3-Way Switch Circuit Works:
A 3-way lighting circuit uses two switches and one light. The switches are connected by three wires: a common wire and two traveler wires.

• Common Wire: This wire carries power from the electrical source or delivers power to the light.
• Traveler Wires: These two wires connect the switches and allow the flow of electricity to change paths, depending on the switch positions.

Steps in the Circuit:

1. Power enters the first switch through the common terminal.
2. Depending on the switch position, electricity flows through one of the two traveler wires to the second switch.
3. The second switch directs the electricity to the light or breaks the circuit to turn it off.

With a 3-way switch, you can control the same light from two locations, making it convenient and efficient.

Learning about 3-way switches gives Scouts a practical understanding of electrical circuits and how wiring is used in homes. The Electricity merit badge includes activities like this to build knowledge and skills for handling electrical systems safely and effectively.

Exploring Series and Parallel Circuits with Two Lights

The Electricity merit badge teaches Scouts how circuits work by building and comparing series and parallel circuits. Connecting two lights with a battery and a switch in both configurations helps you see how electricity flows differently in each type of circuit.

Building a Series Circuit:

• Connect one terminal of the battery to one terminal of the first light.
• Connect the other terminal of the first light to one terminal of the second light.
• Connect the remaining terminal of the second light to the switch, and then back to the battery.
• When the switch is closed, electricity flows through both lights in sequence.

Building a Parallel Circuit:

• Connect one terminal of the battery to one terminal of both lights.
• Connect the other terminals of both lights to the switch, and then back to the battery.
• Each light has its own path for electricity to flow.

Differences Between Series and Parallel Circuits:

• Brightness: In a series circuit, the lights share the same current, so they will be dimmer. In a parallel circuit, each light receives full current, making them brighter.
• Failure: In a series circuit, if one light goes out, the circuit is broken, and both lights turn off. In a parallel circuit, if one light goes out, the other stays on because it has its own path.
• Current Flow: A series circuit has one path for electricity, while a parallel circuit has multiple paths, allowing current to flow independently to each light.

Understanding the differences between series and parallel circuits helps Scouts learn how electrical systems are designed to meet different needs. This hands-on activity for the Electricity merit badge shows how electricity behaves and how circuits work in real-life applications like home wiring and electronics.

Career Opportunities Using Skills in Electricity

The Electricity merit badge introduces Scouts to skills and knowledge that are useful in many careers. Understanding electricity can lead to jobs in various industries, each playing a role in building, maintaining, and advancing electrical systems.

• Electrician: Electricians install and repair wiring in homes, businesses, and factories. They ensure systems work safely and meet building codes.
• Electrical Engineer: Electrical engineers design electrical systems and equipment, such as circuits, motors, and power systems. They work on innovative technologies in industries like electronics, energy, and telecommunications.
• Power Plant Operator: Power plant operators manage the equipment that generates electricity. They monitor systems to ensure consistent and safe power production.
• Utility Lineworker: Lineworkers build and maintain power lines that deliver electricity from power plants to homes and businesses. They work outdoors and often handle emergency repairs.
• Solar Energy Technician: Solar technicians install and maintain solar panels and related equipment, helping produce renewable energy.
• Electronics Technician: Electronics technicians work with small electrical systems like those in computers, appliances, and other devices. They assemble, troubleshoot, and repair these systems.
• Energy Auditor: Energy auditors inspect buildings to assess energy efficiency and suggest ways to save power. They focus on improving electrical systems and reducing energy costs.
• Electrical Inspector: Inspectors ensure electrical installations meet safety codes and regulations. They work on construction sites, renovations, or large electrical projects.

The Electricity merit badge helps Scouts explore how these careers use electricity and the knowledge needed for each role. Understanding these opportunities can inspire Scouts to pursue paths that align with their interests and skills in electricity.

Engineering Troop Program Feature for Scouts BSA

The Engineering Troop Program Feature for Scouts BSA connects well with the Electricity merit badge. In the Engineering program, Scouts learn about various types of engineers, including electrical engineers. This knowledge is directly relevant to the Electricity merit badge, where Scouts explore the world of electrical circuits, wiring, and devices.

Scouts can use the Engineering program as a foundation to better comprehend the concepts they’ll encounter while earning the Electricity merit badge, making it a valuable resource for their learning journey. This program feature provides a practical link between engineering principles and the hands-on electrical knowledge required for the badge.

More Merit Badge Resources

Merit badges are a great way for Scouts to explore new interests and learn useful skills. With over 100 merit badges to choose from, you can try topics like outdoor skills, science, history, technology, or even hobbies. Any Scout can earn merit badges, and you don’t have to wait until you advance in rank to start. Merit badges give you the chance to try new activities and discover potential careers.

For example, the Electricity merit badge helps you learn about circuits, safety, and how electricity powers our world. You can also earn badges in areas like first aid, cooking, or communication. Whether you enjoy nature, crafts, or business, there’s something for everyone. Talk to your Scoutmaster to find out which merit badges might interest you. By earning badges like the Electricity merit badge, you can build skills that will help you now and in the future.

Learn More about Scouts BSA

Scouts BSA is a program for youth aged 11 to 17 that focuses on building character, leadership, and life skills. Scouts learn through outdoor adventures like camping, hiking, and service projects while working together in small teams called patrols. They gain confidence and experience by taking on leadership roles and learning valuable skills, including earning merit badges like the Electricity merit badge. The program helps youth grow in citizenship, physical fitness, and teamwork.

Scouts can explore over 100 merit badges covering a variety of topics, from outdoor skills to science and technology. For example, the Electricity merit badge teaches about circuits, safety, and how electricity works. Scouts also work toward ranks like Eagle Scout, which represents dedication and achievement. By participating in Scouts BSA, youth develop skills that prepare them for challenges in life and opportunities to make a difference in their communities.

What is the Electricity merit badge?

The Electricity merit badge is a program offered by the Boy Scouts of America to teach Scouts about the fundamentals of electricity, circuits, safety, and practical applications of electrical knowledge.

Who can earn the Electricity merit badge?

Any registered youth member of a Scouts BSA Troop, or any member of a Venturing Crew or Sea Scouts Ship who has achieved 1st Class Rank in a troop, can earn the Electricity merit badge.

What are the requirements for earning the Electricity merit badge?

The requirements include tasks like understanding electrical safety, creating wiring diagrams, learning about electrical devices, and completing hands-on projects related to electricity.

Is there a minimum age or rank requirement to start working on the Electricity merit badge?

There’s no specific age or rank requirement. Scouts can start working on the badge as soon as they join Scouts BSA, as long as they have the necessary understanding and skills.

Are there any safety concerns when working on the Electricity merit badge?

Yes, safety is a top priority. Always follow safety guidelines, use proper tools and equipment, and seek guidance from adults or counselors when conducting electrical experiments or projects.

Can the Electricity merit badge help me in everyday life?

Absolutely. Understanding electricity is useful in many aspects of life, from home maintenance to careers in engineering and technology.

How long does it typically take to earn the Electricity merit badge?

The time it takes to earn the badge can vary depending on your prior knowledge and the complexity of the requirements. On average, it may take several weeks to a few months.

Can I work on multiple merit badges simultaneously, including the Electricity merit badge?

Yes, you can work on multiple merit badges at the same time, but it’s important to manage your time effectively to ensure you meet the requirements for each badge.

The Electricity merit badge is a great way to learn how electricity works and why it’s important in our daily lives. Scouts dive into the basics of circuits, safety, and energy use while exploring the science behind what powers our world. This merit badge is a hands-on experience that teaches skills you can use at home and in future careers.

Scouts will complete activities like building circuits, understanding electrical terms, and calculating energy use. You’ll also learn how to prevent electrical hazards and handle emergencies, such as resetting breakers or responding to electrical fires. These practical skills make you more confident around electrical systems.

The Electricity merit badge is about solving problems and being prepared. By earning this badge, you’ll gain knowledge that helps you appreciate the energy we use every day and how to use it safely. Plus, it’s fun to see your projects come to life with power!
