Nuclear Science Merit Badge

The Nuclear Science merit badge helps Scouts learn about radiation, atoms, and how nuclear energy works. Scouts explore how radiation is part of daily life and how it is used in medicine, energy, and industry. They also learn about safety measures to protect people from radiation exposure.

By earning the Nuclear Science merit badge, Scouts develop skills in science and problem-solving. They perform hands-on experiments, such as building a cloud chamber or testing radiation levels. These activities help Scouts understand how nuclear science is used in the real world.

Scouts also explore careers in nuclear science. They learn about jobs in medicine, energy production, and research. This can help them discover new interests and future career options.

Working on the Nuclear Science merit badge helps Scouts think critically and understand an important field of science. They gain knowledge that can be useful in school and everyday life.

Nuclear Science Merit Badge Requirements

Nuclear Science Merit Badge Workbook / Worksheet

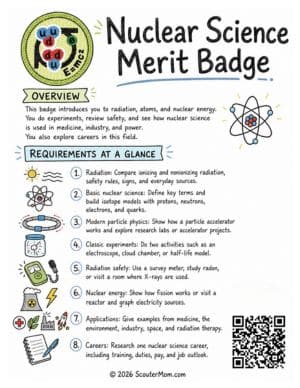

Nuclear Science Merit Badge Printable Requirement Check Off Sheet

Checklist for All Merit Badges

Help with Answers for Nuclear Science Merit Badge Requirements

Find specific helps for some of the Nuclear Science merit badge requirements listed below. Some of these resources will just give the answers. Others will provide engaging ways for older Scouts to introduce these concepts to new Scouts.

• Requirement 1: Radiation
• Requirement 2: Background
• Requirement 3: Modern Physics
• Requirement 4: Projects
• Requirement 5: Detection
• Requirement 6: Energy
• Requirement 7: Applications
• Requirement 8: Careers
• More Resources

Understanding Radiation

Radiation is energy that travels in waves or tiny particles. It comes from the sun, the earth, and even some things inside our homes. Radiation can move through air, water, and solid objects. Some types of radiation are harmless, while others can be dangerous. The Nuclear Science merit badge helps Scouts understand different types of radiation, how it is used in science and medicine, and how to stay safe around it.

There are two main types of radiation: ionizing and nonionizing. Ionizing radiation has enough energy to remove electrons from atoms. This can change the structure of atoms and damage living cells. Examples of ionizing radiation include X-rays, gamma rays, and radiation from radioactive materials. Because it can harm cells, ionizing radiation is used carefully in medicine and industry.

Nonionizing radiation does not have enough energy to remove electrons from atoms. This type of radiation includes radio waves, microwaves, and visible light. It is generally safe, though too much exposure to some types, like ultraviolet (UV) rays from the sun, can still cause harm, such as sunburn.

Scouts working on the Nuclear Science merit badge learn how ionizing radiation is used in science, medicine, and energy production. They also explore ways to stay safe around radiation. Understanding the difference between ionizing and nonionizing radiation helps Scouts make informed decisions about radiation in everyday life.

Radiation Safety and the ALARA Principle

The ALARA principle stands for “As Low As Reasonably Achievable.” It is a safety rule used to limit radiation exposure. This means people should take steps to keep their exposure to radiation as low as possible while still getting the benefits of using it. ALARA is important in places like hospitals, nuclear power plants, and research labs where people work with radiation. The Nuclear Science merit badge teaches Scouts about the ALARA principle and how radiation safety measures help protect people in different settings.

To follow the ALARA principle, there are three main ways to reduce exposure: time, distance, and shielding. Limiting the time spent near radiation lowers the total dose a person receives. Increasing the distance from a radiation source makes the exposure weaker. Using shielding, such as lead barriers or thick walls, blocks radiation and protects people from its effects.

Laws also require safety measures to protect workers and the public from radiation risks. These laws set limits on how much radiation a person can be exposed to each year. They also require signs, protective equipment, and training for people who work with radiation. These rules help prevent harmful radiation exposure and keep workplaces safe.

Scouts working on the Nuclear Science merit badge need to consider safety while completing experiments and activities. They should follow instructions carefully, use protective equipment if needed, and be aware of their surroundings. Learning about ALARA and radiation safety helps Scouts understand the importance of handling radiation responsibly.

The Radiation Hazard Symbol and Its Purpose

The radiation hazard symbol is a warning sign used to show the presence of radioactive materials or radiation. It is a purple or black trefoil symbol on a yellow background. The trefoil design has three curved blades around a central point. This symbol is recognized worldwide as a sign of radiation danger. The Nuclear Science merit badge teaches Scouts how to identify this symbol, understand where it is used, and learn the importance of radiation safety.

The radiation hazard symbol should be placed anywhere radiation is present at levels that could be harmful. It is commonly found on containers holding radioactive materials, doors to rooms where radiation is used, and equipment that produces radiation, such as X-ray machines. The symbol warns people to be cautious and follow safety rules in these areas.

There is also a newer radiation warning symbol that includes a trefoil, a skull and crossbones, and a running figure. This version is used on high-risk radiation sources that could cause serious harm if touched or opened. It is placed inside equipment or containers that should not be handled without proper training.

Scouts working on the Nuclear Science merit badge learn about radiation safety and the importance of warning signs. Knowing where to find radiation hazard symbols helps Scouts recognize areas where extra caution is needed. Understanding these symbols is an important part of learning how to work safely with radiation.

Everyday Exposure to Ionizing Radiation

Ionizing radiation is all around us. Some of it comes from space, while some comes from the ground, the air, and even the food we eat. This type of radiation has enough energy to remove electrons from atoms, which can change materials at the atomic level. Although high levels of ionizing radiation can be harmful, the small amounts we are exposed to daily are generally safe. The Nuclear Science merit badge helps Scouts understand where ionizing radiation comes from, how it affects matter, and how to stay safe around it.

Radiation from space is called cosmic radiation. It comes from the sun and other stars. The earth’s atmosphere helps block much of this radiation, but some still reaches the surface. People who live at higher altitudes, such as in the mountains, receive more cosmic radiation because the air is thinner. Airplane travel also increases exposure since planes fly above much of the atmosphere’s protection.

On earth, radiation comes from naturally occurring radioactive materials, or NORM. These materials are found in soil, rocks, water, and even common household items. Some examples of NORM found in homes or grocery stores include:

• Ceramic tiles – Some glazes contain naturally radioactive minerals.
• Bananas – Contain potassium-40, a radioactive form of potassium.
• Granite countertops – Have small amounts of uranium and thorium, which give off radiation.
• Salt substitutes – Often contain potassium chloride, which includes potassium-40.
• Cat litter – Made from clay, which can have small amounts of naturally radioactive minerals.
• Brazil nuts – Contain radium, which is naturally radioactive.
• Drinking water – Can have trace amounts of radon or uranium, depending on the water source.
• Smoke detectors – Some contain americium-241, a radioactive material used to detect smoke.
• Fertilizers – May include phosphate rock, which contains uranium and radium.
• Cigarettes – Tobacco plants absorb radioactive elements like polonium-210 from the soil.

Scouts working on the Nuclear Science merit badge learn how radiation is part of everyday life. Understanding natural radiation sources helps Scouts recognize that radiation is not always dangerous but must be handled carefully in large amounts. Learning about NORM also shows how nuclear science connects to the world around us.

Radiation Exposure and Contamination

Radiation exposure and contamination are two different things. Radiation exposure happens when a person is near a source of radiation. The radiation passes through the body, but nothing stays behind. For example, getting an X-ray at the doctor’s office is a type of radiation exposure. Once the X-ray machine is turned off, the radiation is gone. The Nuclear Science merit badge teaches Scouts the difference between radiation exposure and contamination, helping them understand how radiation interacts with people and the environment.

Contamination happens when radioactive materials get on or inside a person, object, or environment. This can happen if radioactive dust, liquid, or gas spreads. Unlike exposure, contamination can last until the radioactive material is removed or decays. A person working with radioactive materials must be careful to avoid contamination by wearing protective clothing and following safety procedures.

Radiation can be harmful to humans, wildlife, and the environment. High doses of radiation can damage cells and cause health problems, such as burns, sickness, or cancer. Animals and plants can also be affected if radioactive materials enter the air, water, or soil. Nuclear accidents or improper disposal of radioactive waste can cause long-term environmental damage.

Scouts working on the Nuclear Science merit badge can calculate their annual radiation dose using online tools or charts. The average person receives about 620 millirem per year from natural and man-made sources. A worker in a nuclear power plant might receive around 300 additional millirem per year, depending on their job and safety measures. Understanding radiation exposure helps Scouts see how nuclear science is used safely in different careers.

Understanding Important Nuclear Science Terms

Scouts working on the Nuclear Science merit badge need to understand key terms related to atoms, radiation, and nuclear reactions. These terms help explain how matter is made and how radiation behaves. Below is a list of important terms and their meanings.

• Atom – The smallest unit of an element. Everything is made of atoms.
• Nucleus – The center of an atom, where protons and neutrons are located.
• Proton – A positively charged particle found in the nucleus of an atom.
• Neutron – A particle in the nucleus with no charge (neutral).
• Electron – A negatively charged particle that orbits the nucleus of an atom.
• Quark – A tiny particle that makes up protons and neutrons.

Radiation comes in different forms. Some types are particles, while others are waves of energy.

• Alpha particle – A type of radiation made of two protons and two neutrons. It cannot travel far and is stopped by a sheet of paper.
• Beta particle – A high-speed electron or positron released from a radioactive atom. It can pass through paper but is blocked by plastic or aluminum.
• Gamma ray – A type of radiation made of energy, not particles. It can pass through many materials and requires thick lead or concrete for shielding.
• X-ray – A form of radiation used in medicine to see inside the body. X-rays are weaker than gamma rays but still require shielding.

Some materials naturally give off radiation. This happens when atoms become unstable and break down.

• Ionization – The process where radiation removes electrons from atoms, creating charged particles called ions.
• Radioactivity – The release of radiation from an unstable atom.
• Radioisotope – A radioactive form of an element with an unstable nucleus.
• Stability – When an atom’s nucleus has a balanced number of protons and neutrons, so it does not release radiation.

By learning these terms, Scouts in the Nuclear Science merit badge gain a better understanding of how atoms and radiation work. This knowledge helps explain nuclear energy, medical uses of radiation, and safety measures for handling radioactive materials.

Building Models of Atomic Isotopes

Atoms are made of protons, neutrons, and electrons. The number of protons in an atom determines which element it is. Atoms of the same element can have different numbers of neutrons. These variations are called isotopes. Isotopes have the same number of protons but different mass numbers because of their neutron count.

Scouts working on the Nuclear Science merit badge can build 3-D models to understand isotopes. One way to do this is by using small balls or beads to represent protons, neutrons, and electrons. Different colors can be used to tell them apart. For example:

• Use red balls for protons.
• Use blue balls for neutrons.
• Use yellow balls for electrons.

Each model should show protons and neutrons in the nucleus and electrons orbiting around it. For example, an element with 6 protons will always have 6 electrons, but one isotope might have 6 neutrons, another might have 7 neutrons, and a third might have 8 neutrons. These differences create different isotopes of the same element. The isotope notation includes the element symbol, the atomic number (number of protons), and the mass number (protons plus neutrons).

To make the model:

1. Count out the number of protons for the chosen element and place them in the center.
2. Add neutrons to the center to create an isotope. Try different numbers of neutrons to make three isotopes.
3. Attach electrons around the nucleus to match the number of protons.

In addition to isotope models, Scouts can create a model showing how protons and neutrons are made of quarks. Use three smaller beads or clay pieces for each proton and neutron. A proton is made of two up quarks and one down quark, while a neutron has two down quarks and one up quark.

By building these models, Scouts in the Nuclear Science merit badge can see how atoms are structured. Understanding isotopes and quarks helps explain why some atoms are stable and others are radioactive. This knowledge is useful in many areas of science, including nuclear energy and medicine.

Exploring Particle Accelerators and Nuclear Research

Particle accelerators are powerful machines that speed up tiny particles, such as protons or electrons, to very high speeds. Scientists use these machines to study the building blocks of atoms and understand how matter behaves. Accelerators help researchers explore fundamental physics, develop medical treatments, and improve technology.

Scouts working on the Nuclear Science merit badge can visit an accelerator, research lab, or university to learn about nuclear science. These places have advanced equipment to study particles and radiation. Scientists at these facilities investigate nuclear reactions, study materials for space travel, and improve medical imaging techniques like PET scans.

Another way to complete this requirement is by researching three particle accelerators and their experiments. Some well-known accelerators include:

• Large Hadron Collider (LHC) – Located in Switzerland, the LHC is the world’s largest accelerator. It smashes protons together at high speeds to study particles like the Higgs boson, which helps explain how particles get mass.
• Fermi National Accelerator Laboratory (Fermilab) – In the United States, Fermilab studies neutrinos, tiny particles that pass through matter almost undetected. These studies help scientists learn about the universe and its origins.
• SLAC National Accelerator Laboratory – This U.S. accelerator uses high-energy electrons to study atoms and molecules. It helps researchers understand how materials behave at the atomic level, leading to new technologies.

By learning about particle accelerators, Scouts in the Nuclear Science merit badge gain insight into modern physics and nuclear science. These machines help scientists answer important questions about the universe while also improving medical treatments and new technologies.

Building an Electroscope to Detect Electric Charge

An electroscope is a simple device used to detect electric charge. It works by using metal leaves or foil that move apart when charged. Scientists and engineers use electroscopes to study static electricity and radiation. Scouts working on the Nuclear Science merit badge can build one to see how electric charge behaves.

To make an electroscope, you will need a glass jar, a metal lid, a paperclip or wire, aluminum foil, and a balloon or plastic rod for charging. Follow these steps:

1. Punch a hole in the lid and insert a bent paperclip or wire. One end should be inside the jar, and the other should be outside.
2. Attach two small strips of aluminum foil to the inside end of the wire. These will act as the detecting leaves.
3. Rub a balloon or plastic rod on your hair to create static electricity. Bring it close to the wire’s top, and the aluminum foil leaves will move apart. This happens because the charge spreads through the wire, making both foil strips repel each other.

To test radiation, place a small radiation source, such as a piece of uranium glass or an old watch with radium paint, inside the jar. If the radiation ionizes the air inside, it will remove some of the charge from the foil leaves, causing them to slowly collapse. This happens because ionization allows the charge to escape, reducing the repelling force between the foil pieces.

Scouts working on the Nuclear Science merit badge learn how radiation interacts with matter through experiments like this. Building and testing an electroscope helps Scouts understand static electricity, ionization, and how radiation can affect materials in everyday life.

Making a Cloud Chamber to See Radiation

A cloud chamber is a simple device that makes invisible radiation visible. It allows you to see the paths, or tracks, that tiny charged particles leave as they move through the air. Scientists use cloud chambers to study radiation and understand how different particles behave. Scouts working on the Nuclear Science merit badge can build a cloud chamber to observe radiation in action.

To make a cloud chamber, you will need a clear plastic or glass container, a piece of black felt, rubbing alcohol, dry ice, and a small radiation source, such as a piece of uranium glass or a smoke detector with americium. Follow these steps:

1. Place the black felt inside the container and soak it with rubbing alcohol.
2. Turn the container upside down on a metal tray or thick piece of aluminum that has been cooled with dry ice. The bottom of the container should be very cold.
3. After a few minutes, a thin layer of alcohol vapor will form near the bottom of the chamber. Shine a flashlight from the side to make the tracks easier to see.
4. Place the radiation source near the chamber and watch for tiny white trails moving through the vapor. These are tracks left by radiation particles.

The tracks form because charged particles, such as alpha or beta particles, ionize the alcohol vapor. Ionization happens when a fast-moving particle knocks electrons off atoms, creating a trail of tiny charged droplets. Different types of radiation create different tracks. Alpha particles make short, thick tracks, while beta particles leave longer, thinner ones.

By building a cloud chamber, Scouts in the Nuclear Science merit badge can see radiation in action. This experiment helps Scouts understand how radiation interacts with matter and how scientists study invisible particles using simple tools.

Understanding Half-Life and Decay Chains

Half-life is the time it takes for half of a radioactive substance to decay. When an atom decays, it changes into a different element or isotope by releasing radiation. Scientists use half-life to measure how fast a radioactive material breaks down. This is important in medicine, archaeology, and nuclear power. Scouts working on the Nuclear Science merit badge can perform a simple experiment to model half-life.

To demonstrate half-life, use a set of 100 coins, beads, or small objects. Start with all pieces facing the same way, such as heads up. Shake them in a container and spill them onto a flat surface. Remove any pieces that land tails up. Count the remaining pieces, shake them again, and repeat the process. Each round represents one half-life. The number of pieces will decrease by about half each time. This model shows how radioactive material decays over time.

Decay chains happen when a radioactive element breaks down into another radioactive element instead of a stable one. This process continues until the final product is stable. For example, uranium-238 goes through a long decay chain, transforming into different elements like thorium-234 and radium-226 before becoming lead-206, which is stable. Each step in the decay chain has its own half-life.

By performing this experiment, Scouts in the Nuclear Science merit badge can see how half-life works and understand decay chains. Learning about these concepts helps explain how radiation changes over time and why some materials remain radioactive for thousands of years. This knowledge is useful in many areas of science, including environmental studies and nuclear energy.

Measuring Radiation and Understanding Protection

A radiation survey meter is a device that detects and measures radiation levels. It counts the number of radiation particles or waves that pass through it each minute, known as counts per minute. A radioactive source, such as uranium glass or an old watch with radium paint, gives off radiation that can be measured. Scouts working on the Nuclear Science merit badge can use a survey meter to see how distance and shielding affect radiation exposure.

To perform this experiment, place the radiation survey meter on a table and measure the background radiation without a source. Then, place a radioactive source at different distances from the meter and record the counts per minute. As the source moves farther away, the count should decrease. This happens because radiation spreads out and becomes weaker with distance.

Next, test how different materials block radiation. Place the radioactive source at a fixed distance from the survey meter and measure the counts per minute. Then, put different materials, such as paper, plastic, and lead, between the source and the meter. Paper may block alpha particles, plastic can reduce beta particles, and lead is effective at blocking gamma rays. Comparing the measurements shows how shielding affects radiation levels.

Time, distance, and shielding are the three main ways to reduce radiation exposure. Limiting the time spent near a radiation source lowers the total dose received. Increasing distance weakens exposure since radiation spreads out. Using shielding, such as lead or concrete, blocks radiation and provides protection. Scouts in the Nuclear Science merit badge learn how these safety measures help workers in medicine, energy, and research handle radiation safely.

Detecting and Reducing Radon in Homes

Radon is a colorless, odorless gas that comes from the natural breakdown of uranium in soil and rock. It can enter homes through cracks in the foundation, gaps around pipes, or other openings. Radon is radioactive and can be harmful if inhaled over time. Scouts working on the Nuclear Science merit badge can learn how radon is detected and what steps can be taken to reduce its levels.

To test for radon, homeowners can use either short-term or long-term tests. Short-term tests last from 2 to 7 days and use small devices, such as charcoal canisters or electronic detectors, placed in the lowest level of the home. These tests give a quick reading of radon levels. Long-term tests last 90 days or more and provide a better overall average of radon levels throughout different seasons. Long-term tests use devices like alpha track detectors, which record radon exposure over time.

After testing, results are measured in picocuries per liter (pCi/L). If the radon level is 4 pCi/L or higher, the Environmental Protection Agency (EPA) recommends taking action to reduce it. Short-term tests should be followed up with another test if results are close to this level. Long-term tests give a more accurate picture of radon exposure, especially in areas where radon levels change throughout the year.

Radon is a health risk because it releases radiation that can damage lung tissue. Long-term exposure increases the risk of lung cancer, especially for smokers. To reduce radon levels, homes can be sealed to prevent gas from entering, or a radon mitigation system can be installed. These systems use fans and pipes to vent radon outside before it builds up indoors. By understanding radon detection and safety, Scouts in the Nuclear Science merit badge learn how radiation affects everyday life and how to protect against its risks.

Understanding X-Ray Safety and Room Design

X-rays are a type of ionizing radiation used to see inside the body. Doctors and dentists use X-rays to check for broken bones, dental issues, and other medical conditions. X-ray machines send a small dose of radiation through the body, creating an image based on how different tissues absorb the radiation. Scouts working on the Nuclear Science merit badge can visit a medical or dental office to see how X-rays are used and learn about safety precautions.

An X-ray room is designed to protect both patients and medical workers. The X-ray unit is usually placed in the center of the room, with a table or chair for the patient. The unit operator, who controls the machine, stands behind a protective barrier, often made of lead-lined glass. This barrier shields the operator from repeated radiation exposure. The walls of the room may also have lead shielding to prevent X-rays from escaping to other areas.

Safety precautions are important when using X-rays. Patients wear lead aprons or thyroid shields to protect sensitive areas from unnecessary radiation. The X-ray machine is carefully aimed to focus only on the area being examined. The operator controls the exposure time to limit radiation to the lowest amount needed for a clear image. These precautions help reduce the risk of radiation exposure while still allowing doctors to get important medical information.

By learning about X-ray room design and safety, Scouts in the Nuclear Science merit badge can understand how radiation is used responsibly. X-rays are an important medical tool, but proper precautions are necessary to protect both patients and healthcare workers. Understanding these safety measures helps Scouts appreciate how nuclear science is applied in everyday life.

Understanding Nuclear Fission and Chain Reactions

Nuclear fission is the process of splitting an atom’s nucleus to release energy. When a neutron hits the nucleus of a large atom, such as uranium-235 or plutonium-239, the nucleus splits into smaller parts. This releases more neutrons and a large amount of energy. The new neutrons can then hit other nuclei, causing a chain reaction. Scouts working on the Nuclear Science merit badge can use a mousetrap reactor model to understand how chain reactions work.

A mousetrap reactor is a simple experiment that shows how a chain reaction can start. Set up many mousetraps close together, each with a ping-pong ball resting on it. If you trigger one mousetrap, it will release its ball, which can hit other mousetraps and set them off. This demonstrates how one event can cause a series of reactions. In a nuclear reactor, the same idea applies—one fission reaction releases neutrons, which trigger more fission reactions.

A nuclear reactor must control this reaction to keep it safe. Control rods, made of materials like boron or cadmium, absorb neutrons and slow down the chain reaction. If the control rods are fully inserted, the reaction stops. If they are partially inserted, they can regulate the reaction to produce a steady amount of energy. In an emergency, fully inserting the control rods shuts down the reactor quickly.

Critical mass is the minimum amount of fissile material needed to keep a chain reaction going. If there is not enough uranium or plutonium, the neutrons escape before they can trigger more fission events, and the reaction stops. If too much material is packed together, the reaction can become uncontrollable. By learning about nuclear fission, chain reactions, and critical mass, Scouts in the Nuclear Science merit badge gain a better understanding of how nuclear energy is produced and controlled for safe use.

Understanding Nuclear Power Plants and Their Role in U.S. Electricity Generation

Nuclear power plants generate electricity through a process called nuclear fission. In this process, the nucleus of a heavy atom, such as uranium-235, splits into smaller parts when struck by a neutron. This splitting releases a significant amount of heat energy, which is harnessed to produce electricity.

How a Nuclear Reactor Works

The core component of a nuclear power plant is the reactor, where fission occurs. Here’s a simplified overview of the process:

1. Nuclear Fission: Uranium fuel rods within the reactor core undergo fission, releasing heat.
2. Heat Transfer: This heat is used to convert water into steam. Depending on the reactor design, this can occur directly in the reactor vessel or through a separate heat exchanger.
3. Electricity Generation: The steam drives turbines connected to generators, producing electricity.
4. Cooling and Recycling: After passing through the turbines, the steam is condensed back into water and recycled to absorb more heat from the reactor.

There are primarily two types of reactors in the U.S.:

• Pressurized Water Reactors (PWRs): Water is heated under high pressure to prevent boiling and then passes through a heat exchanger to produce steam.
• Boiling Water Reactors (BWRs): Water boils directly in the reactor vessel, and the generated steam drives the turbines.

Electricity Generation in the United States

The United States utilizes various energy sources for electricity production. As of 2023, the breakdown is as follows:

• Natural Gas: Approximately 43.1%
• Coal: About 16.2%
• Nuclear Energy: Roughly 18.6%
• Renewable Sources: Around 21.4%, including wind, solar, hydroelectric, and others

Visiting a Nuclear Power Plant

For Scouts pursuing the Nuclear Science merit badge, visiting a nuclear power plant, either in person or virtually, offers valuable insights into nuclear energy production. During such a visit, you can observe:

• Reactor Operations: Understanding how the reactor is managed and controlled.
• Safety Measures: Learning about the protocols in place to ensure safe operation.
• Electricity Generation: Seeing firsthand how nuclear fission is transformed into electrical energy.

These experiences provide a deeper appreciation of the complexities and safety considerations inherent in nuclear power generation.

By exploring nuclear power plants and understanding their operation, Scouts can grasp the significant role nuclear energy plays in providing a substantial portion of the nation’s electricity. This knowledge is integral to the Nuclear Science merit badge and fosters a broader understanding of energy production and its implications.

Uses of Nuclear Energy in Science and Technology

Energy from atoms is used in many ways, including medicine, environmental science, industry, space exploration, and cancer treatment. These applications rely on nuclear reactions, such as fission or radioactive decay, to produce useful energy or detect materials. Scouts working on the Nuclear Science merit badge can explore how nuclear science improves daily life and advances technology.

Nuclear Medicine – Doctors use small amounts of radioactive materials to diagnose and treat diseases. One example is the use of technetium-99m in medical imaging. This radioactive substance is injected into a patient’s body, where it travels to specific organs and emits gamma rays. A special camera detects these rays to create images of the inside of the body. Nuclear medicine helps doctors find problems like tumors or blood flow issues without surgery.

Environmental Applications – Radiation is used to study pollution and monitor the environment. For example, scientists use carbon-14 dating to determine the age of ancient plants and animals. This technique measures how much radioactive carbon remains in a sample, helping researchers learn about climate change and the history of ecosystems. Radiation is also used to track how pollutants move through air and water.

Industrial Applications – Many industries use radiation to inspect and improve materials. One common example is using gamma rays to check for cracks in metal structures, such as airplane parts or pipelines. This process, called radiographic testing, allows workers to find hidden defects without damaging the object. Industries also use radiation to sterilize medical tools, making them safe for use in hospitals.

Space Exploration – Space missions rely on nuclear power to generate electricity far from the sun. The Mars rovers, such as Curiosity and Perseverance, use a radioisotope thermoelectric generator (RTG) powered by plutonium-238. This system converts heat from radioactive decay into electricity, allowing the rover to operate for many years. Without nuclear power, deep-space missions would not be possible.

Radiation Therapy – Radiation is an important tool in cancer treatment. High-energy X-rays or gamma rays target and destroy cancer cells while limiting damage to healthy tissue. One example is the use of cobalt-60 in external beam radiation therapy. This treatment helps shrink tumors and improve survival rates for cancer patients.

Scouts in the Nuclear Science merit badge learn how atomic energy is used in different fields. These applications show how nuclear science improves medicine, industry, space exploration, and environmental studies. Understanding these uses helps Scouts see the benefits of nuclear technology in everyday life.

Career Opportunities in Nuclear Science

Here are some careers in nuclear science that a Scout working on the Nuclear Science merit badge might investigate further:

• Nuclear Engineer – Designs and improves nuclear reactors, power plants, and radiation safety systems.
• Health Physicist – Works to protect people and the environment from harmful radiation exposure.
• Radiation Therapist – Uses radiation to treat cancer patients in hospitals and clinics.
• Medical Physicist – Develops and ensures the safety of medical imaging and radiation treatments.
• Nuclear Medicine Technologist – Uses radioactive materials to diagnose and treat diseases.
• Reactor Operator – Controls and monitors nuclear reactors in power plants or research facilities.
• Nuclear Technician – Assists engineers and scientists in operating and maintaining nuclear equipment.
• Nuclear Chemist – Studies radioactive materials and their chemical properties in labs or industry.
• Particle Physicist – Researches the smallest building blocks of matter using particle accelerators.
• Environmental Scientist (Radiation Specialist) – Monitors and studies radiation levels in air, water, and soil.
• Nuclear Waste Management Specialist – Handles and disposes of radioactive waste safely.
• Radiographer (Industrial X-ray Technician) – Uses radiation to inspect metal parts, pipelines, and machinery.
• Nuclear Security Specialist – Works to prevent the misuse of nuclear materials and technology.

These careers show the wide range of opportunities in nuclear science, from energy production to medicine and research. The Nuclear Science merit badge helps Scouts explore these career paths and understand how nuclear technology is used in different fields.

More Merit Badge Resources

Scouts BSA offers over 130 merit badges covering a wide range of topics, including outdoor skills, science, trades, business, and arts. Each badge allows Scouts to explore new interests and develop valuable skills. For example, the Nuclear Science merit badge introduces Scouts to the fundamentals of atomic energy and its applications. To begin earning a merit badge, Scouts should choose a topic that interests them and obtain a signed application from their Scoutmaster. The Scoutmaster can also provide contact information for approved merit badge counselors.

After contacting a counselor, Scouts work on the badge requirements, which may involve research, skill development, or hands-on projects. For the Nuclear Science merit badge, this could include learning about radiation safety or conducting simple experiments. Once all requirements are met, the counselor signs the application, and the Scout submits it to the troop’s advancement chair to receive the badge, typically awarded during a Court of Honor ceremony.

Learn More about Scouts BSA

Scouts BSA is a program for youth ages 11 through 17 that teaches leadership, outdoor skills, and personal responsibility. Scouts learn through hands-on activities, including camping, hiking, and service projects. Merit badges allow Scouts to explore different subjects, such as science, trades, and the outdoors. One example is the Nuclear Science merit badge, which helps Scouts understand radiation, nuclear energy, and safety.

Advancement in Scouts BSA is based on earning merit badges and completing rank requirements. Scouts work with counselors to learn new skills and complete badge activities. The Nuclear Science merit badge is a great choice for Scouts interested in physics, engineering, or medical science. Scouts can also explore careers in nuclear energy, medicine, and research. Through these experiences, Scouts BSA prepares youth for the future while encouraging curiosity and lifelong learning.

What do Scouts learn in the Nuclear Science merit badge?

Scouts learn about atoms, radiation, and how nuclear energy works. They explore how radiation is used in medicine, industry, and space exploration. They also learn about radiation safety and how to measure radiation.

Is radiation dangerous?

Radiation can be harmful in large amounts, but small amounts are safe. The Nuclear Science merit badge teaches Scouts how to stay safe around radiation and how it is used in helpful ways, like in medical treatments and power generation.

What kind of experiments do Scouts do for the Nuclear Science merit badge?

Scouts might build a cloud chamber to see radiation, make an electroscope to detect electric charge, or test how shielding blocks radiation. These experiments help Scouts understand how nuclear science works.

Do I need special equipment to complete the Nuclear Science merit badge?

Some activities require simple materials like plastic containers, rubbing alcohol, or aluminum foil. If a radiation detector is needed, a Scout can visit a lab, power plant, or university to complete the requirement.

Can I visit a nuclear power plant for the Nuclear Science merit badge?

Yes, visiting a nuclear power plant, research lab, or university is one way to meet a requirement. Many places offer virtual tours if an in-person visit is not possible.

What careers use nuclear science?

Nuclear science is used in medicine, engineering, research, and energy production. Careers include nuclear engineers, reactor operators, radiation therapists, and nuclear medicine technologists. The Nuclear Science merit badge helps Scouts explore these career paths.

How does nuclear energy produce electricity?

Nuclear power plants use fission to split atoms, releasing heat. This heat turns water into steam, which spins a turbine to generate electricity. The Nuclear Science merit badge explains this process in detail.

Why is nuclear science important?

Nuclear science helps with medical treatments, energy production, space exploration, and environmental research. It also helps scientists study the universe and improve technology. The Nuclear Science merit badge teaches Scouts how nuclear science affects daily life.

Is the Nuclear Science merit badge difficult?

It requires careful study, but it is not too hard. Scouts who follow the requirements, do the experiments, and ask questions can complete it successfully. It is a great badge for learning about science in a fun way.

The Nuclear Science merit badge helps Scouts explore the world of atoms and radiation. Scouts learn how nuclear energy is used in medicine, industry, space exploration, and electricity production. They also discover how radiation is measured and how to stay safe around it.

Scouts complete hands-on experiments to see nuclear science in action. They might build a cloud chamber to make radiation visible, test how shielding blocks radiation, or model how a chain reaction works. These activities help Scouts understand important scientific concepts in a fun way.

Safety is an important part of the Nuclear Science merit badge. Scouts learn about the ALARA principle, which means keeping radiation exposure as low as reasonably achievable. They also explore how nuclear power plants safely produce energy and what precautions are taken to protect people and the environment.

The Nuclear Science merit badge also introduces Scouts to careers in nuclear science. They learn about jobs in nuclear engineering, medicine, and research. This badge is a great way to explore science and discover how nuclear technology is used in everyday life.
